  • Volume Tracker
  • Setting up the tracking system
  • Executing the tracking system
  • Visualizing the results
  • Generating an Isosurface
Edit on GitHub
  1. Components & Scripts

Volume Tracking (Pro)

PreviousRobot Inverse Kinematics (Pro)NextMultiplayer (Pro)

Last updated 1 month ago

Volume Tracking is only included in realvirtual.io Professional

Volume tracking allows to record the volume occupied over time by moving components. Once the volume is recorded, the minimal distance can be visualized on any object using different modes.

Volume Tracker

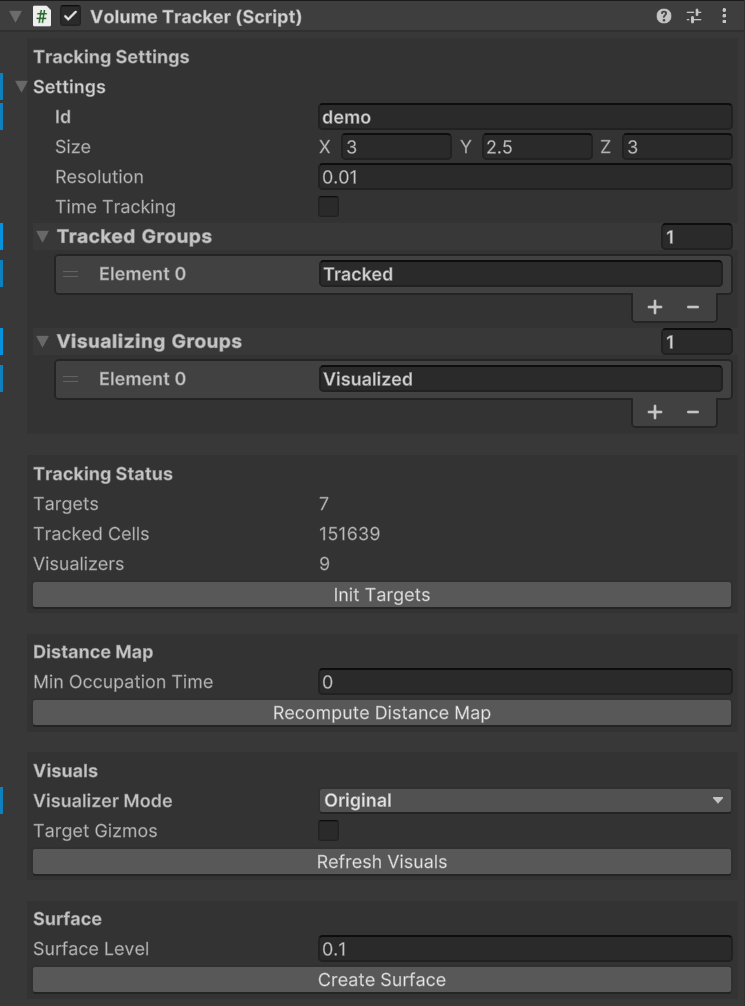

The VolumeTracker prefab can be dragged into a scene. It allows setting up the volume tracking system in edit mode, while recording is done in play mode.

Attribute
Function

Id

the unique identifier of this tracking system. It defines the persistent save path of the generated volume assets.

Size

Defines the bounding box of the tracking system.

Resolution

The resolution defines the dimensions of a single voxel.

Time Tracking

If set to true, the system will track the occupation time for each voxel. If set to false, the system simply reports if a voxel has been occupied or not.

Tracked Groups

The names of the groups that will be tracked

Visualizing Groups

The names of the groups that will display their distance to the tracked volume

Min Occupation Time

if used with time tracking, this parameter defines the minimal occupation time on a single voxel for it to be marked ass occupied.

Visualizer Mode

Allows to choose between different visualization modes

Target Gizmos

Shows the gizmos of the target objects defined by Tracked Groups.

Surface Level

Defines the level of the generated isosurface

Setting up the tracking system

The following instructions help to set up the volume tracking in the edit mode.

First, define the Tracked Groups and the Visualizing Groups as well as the Id, the Size and the resolution of your system.

Click on Init Targets to precompute the voxel matrix of the system. Depending on your setup, this may take a while.

Executing the tracking system

In order to execute the volume tracker it is required to switch to play mode.

In the section Tracking Status you can find the Start Tracking button. This button starts the the volume recording and once the tracked groups have covered the total area of interest, you can stop the tracking by clicking on Stop Tracking. The system will automatically generate the required volume assets.

Play mode can be exited for the following.

Visualizing the results

Once you have generated volume assets, you can choose the visualizer mode that suits your needs. The following gives a brief overview of the available modes.

Original

The visualized groups are displayed using their original materials.

Gradient

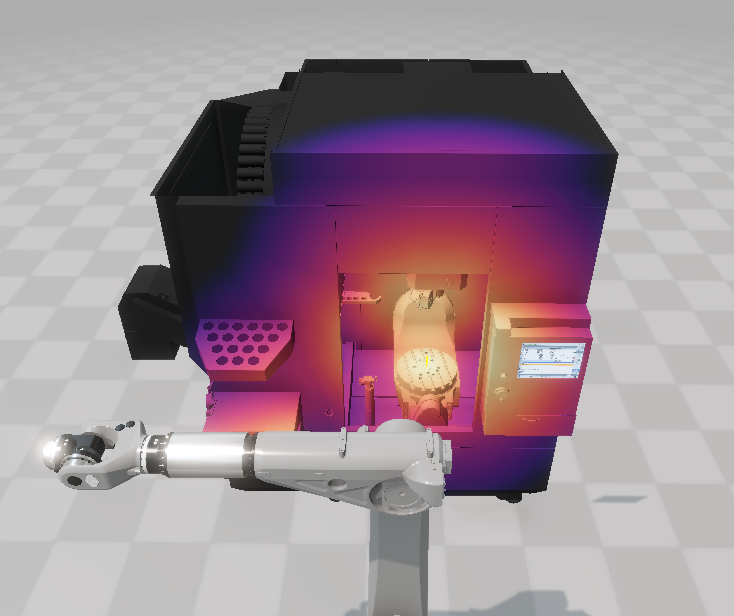

The minimal distance of the visualized groups to the tracked volume is displayed using a continuous heat color gradient. The range of the gradient goes from 0 to 1 meter.

Segments

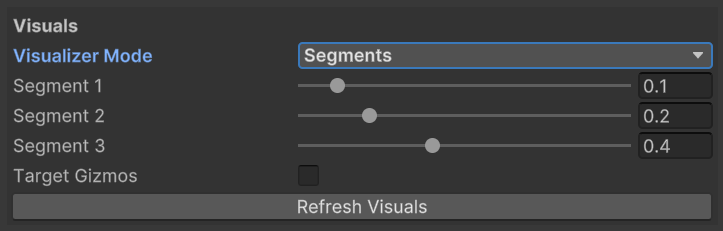

The minimal distance of the visualized groups to the tracked volume is displayed using 3 colored segments with respective cutoffs. The cutoffs can be changed in the inspector.

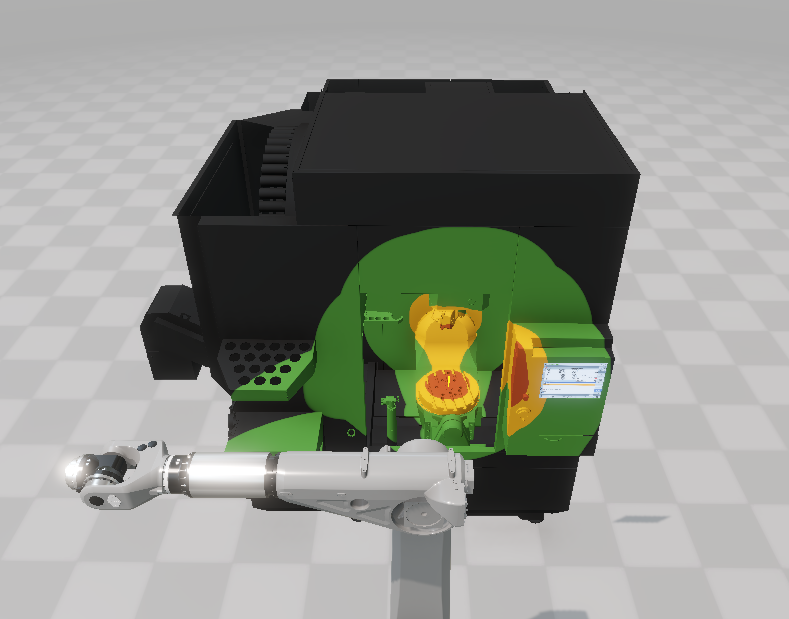

Segment 1 will be displayed as red, segment 2 is yellow and segment 3 is green.

Cutout

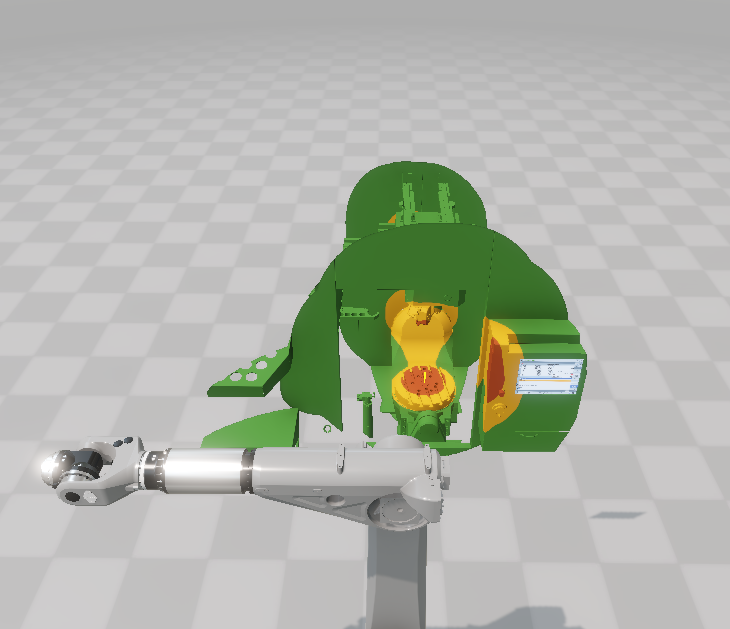

Displayes the visualized groups as in the Segments mode but it cuts of the visualized groups after the 3rd segment.

Generating an Isosurface

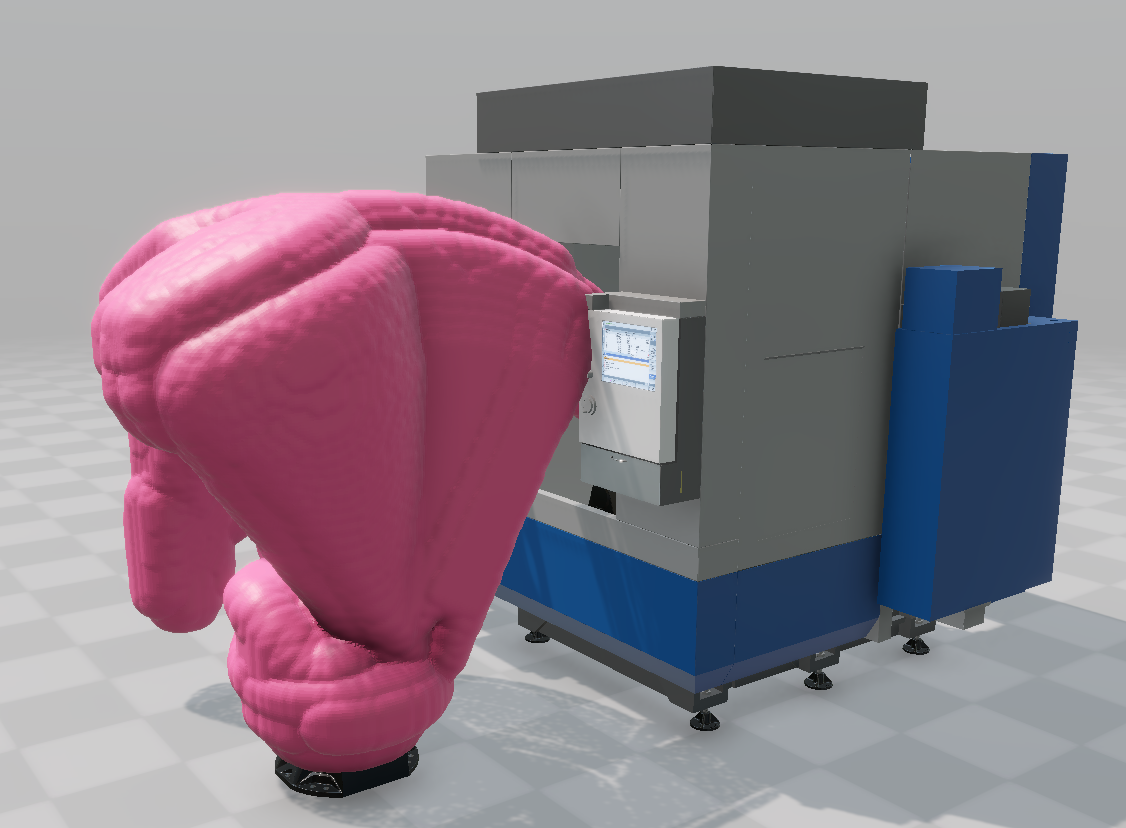

Once you have a recorded volume asset, you can generate a mesh representing the surface of the volume with respect to a certain distance. When set to 0 the isosurface directly shows the occupied volume. For a value of 0.1, the surface encloses the occupied volume with a margin of 0.1 meters as shown below.

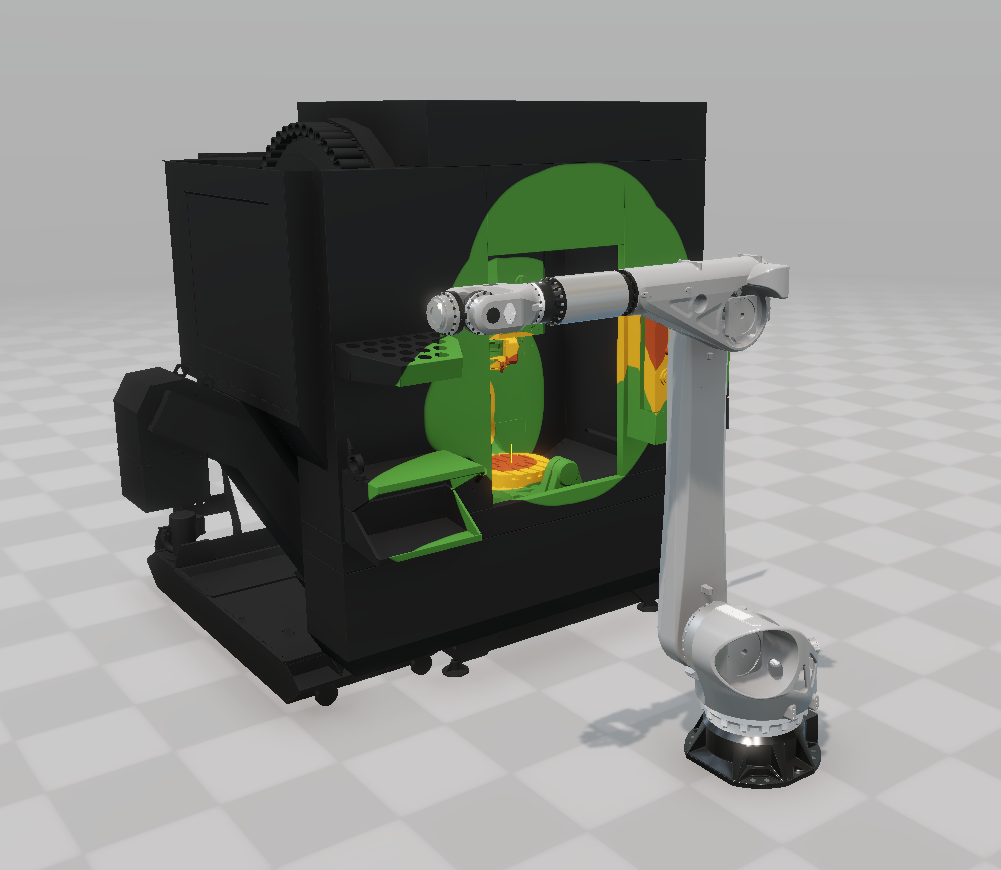

The distance to the volume occupied by the robot is visualized in the CNC machine using a discrete color gradient
