HMI Value

realvirtual.io Professional

HMI Value is displaying values (PLCOutputFloats or PLCOutputInts) for example the number of produced parts, axis positions or temperatures.

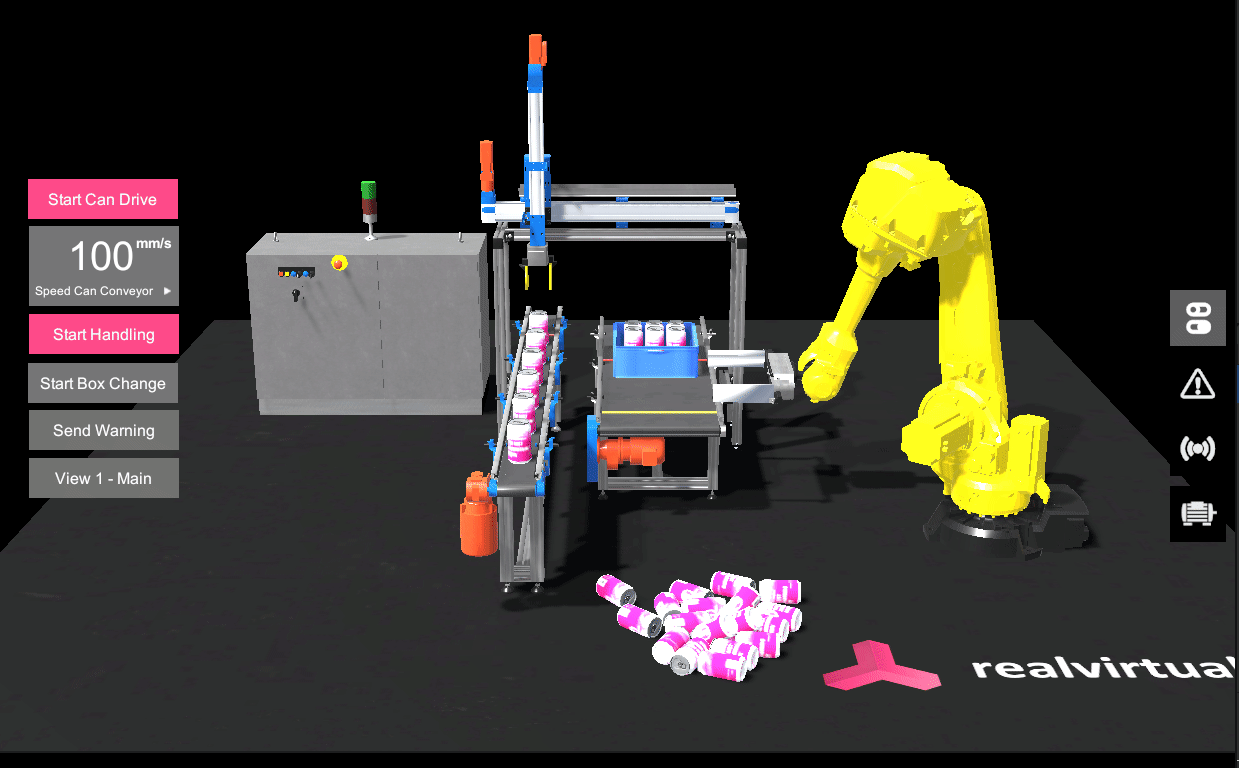

Example HMI-Value moving with the tracked object.

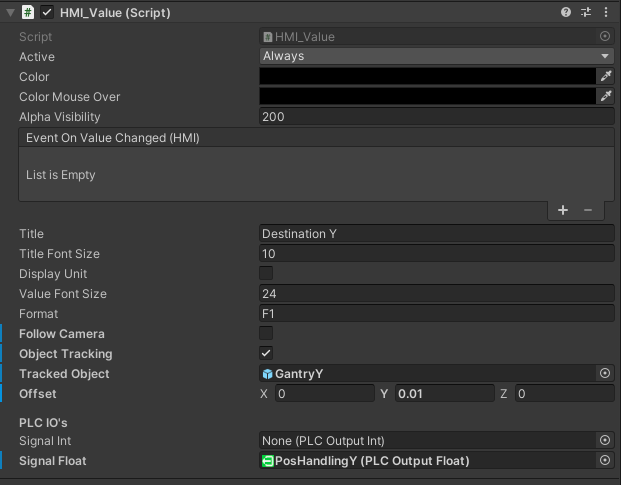

Properties

• Title: short describtion or name of the value

• Title Font Size : font size of the title

• Display Unit : true do display a unit right next to the value

• Unit: user defined unit string

• Unit Font Size : font size of the unit

• Value Font Size: font size of the value

• Format : number format

• Follow Camera: the orientation of the panel is always directed to the camera (only relevant if the canvas uses the render mode "Worldspace")

• ObjectTracking: boolean wether the value object is placed next to a game object within the scene or not

• TrackedObject: game object within the scene which position is used to place the HMI value information

• Offset : Offset position to the object in up direction.

• SignalInt: Connected PLCOutputInt Signal

• SignalFloat : Connected PLCOutputFloat Signal
