Windmod Y200 (Pro)

PreviousWebsocket (Pro)NextCustom Interfaces

Last updated 12 months ago

This interface is currently in Beta

, an application for virtual commissioning, seamlessly integrates with realvirtual.io. This collaboration enhances the simulation experience by leveraging high-performance 3D models from realvirtual.io and Winmod's extensive component library.

Winmod and realvirtual.io communicate via shared memory, enabling efficient data exchange and synchronization. Both applications must run on the same Windows computer to ensure compatibility and optimal performance

Interface properties

SharedMemoryName

Name of the Shared Memory used for communication. Enter the name of the shared memory corresponding to the Winmod Y200 setting.

Status

Status of the interface during simulation. This value is read-only and displays "SHM connected" when the interface is functioning properly.

DebugMode

Toggle debug mode for additional logging. Enable this option to activate debug mode and receive additional logging information.

SignalList

Path to the symbol table of Winmod (text file). Enter the path to the symbol table file (*.txt) containing the PLC signals for later on importing

CycleCounter

Counter of the current cycle. This value is read-only and indicates the current cycle counter.

TickCount

Current tick count. This value is read-only and indicates the current tick count.

Importing Signals

Manually Setting Up Signals

To manually configure signals, it's crucial to specify each signal's position within the Shared Memory Area. This is accomplished by adding a memory position description to the signal name, adhering to the following standardized convention:

Boolean

  • Description: Represents a boolean value (true or false).

  • Syntax: MB 13.6

  • Explanation: Bit shared memory position 13, bit 6.

Integer

  • Description: Represents a signed integer value (2 bytes).

  • Syntax: MI 100

  • Explanation: Integer (2 bytes) at shared memory position 100.

Double Integer

  • Description: Represents a signed integer value (4 bytes).

  • Syntax: MD 102

  • Explanation: Double integer (4 bytes) at shared memory position 102.

Float

  • Description: Represents a floating-point value (4 bytes).

  • Syntax: MF 106

  • Explanation: Float (4 bytes) at shared memory position 106.

Winmod

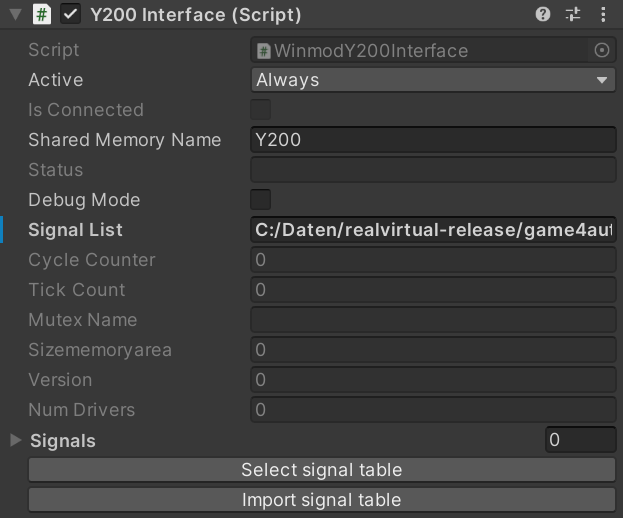

Winmod interface properties

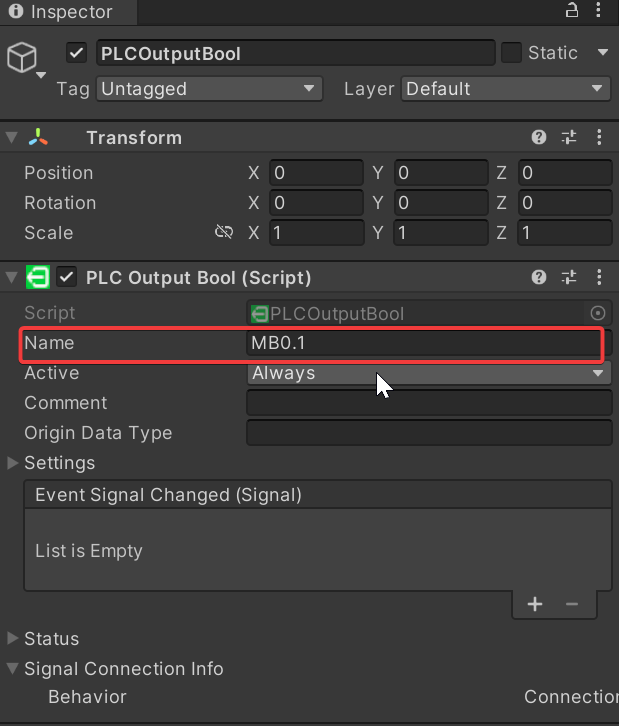

Defining the memory position for a signal
