Siemens S7

Complete S7 PLC training environment with full TIA Portal project and realistic industrial demo cell simulation

Master Siemens S7 PLC programming with a complete industrial automation training environment featuring a realistic demo cell and comprehensive TIA Portal project.

This ModelZoo entry provides a complete S7 training experience, combining:

  • Complete demo cell simulation with robot, CNC machine, and conveyor systems

  • Full TIA Portal project (S7-1500 compatible) with structured programming examples

  • Real-time PLC communication via TCP/IP (Put/Get) for authentic industrial experience

  • Virtual commissioning setup compatible with PLCSim Advanced and real S7 hardware

Demo Cell Overview

The training environment simulates a modern manufacturing cell featuring:

  • Entry conveyor with part detection sensors

  • 6-axis robot for pick-and-place operations with simulated kinematics

  • CNC machining center with door control and machining simulation

  • Exit conveyor for processed parts

  • HMI control panel with operator interface elements

The automation sequence demonstrates typical industrial workflows: part arrival, robot loading, machining operations, robot unloading, and part discharge. All operations are coordinated through the S7 PLC program provided in the complete TIA Portal project.

Interface Configuration

Before connecting to a Siemens S7 PLC, you need to configure the IP address, rack, and slot of the controller.

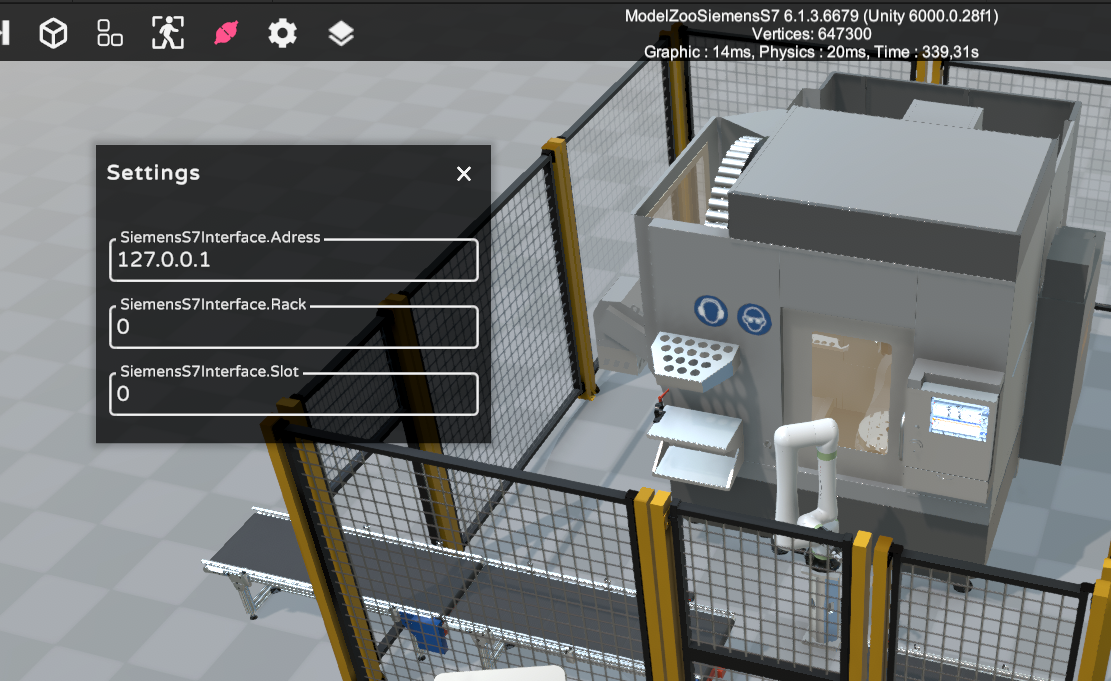

Configuring S7 Settings

To configure the connection:

  1. Click the Settings icon (⚙️) in the toolbar.

  2. Enter the following values based on your setup:

    • SiemensS7Interface.Address → The IP address of your PLC (e.g., 127.0.0.1 for PLCSim Advanced).

    • SiemensS7Interface.Rack → Usually 0.

    • SiemensS7Interface.Slot → Typically 0 for PLCSim Advanced, 1 for physical PLCs.

📘 Refer to your TIA Portal project or PLC documentation to confirm the correct rack and slot values.

TIA Portal Project

This complete TIA Portal project provides a fully functional S7-1500 program that demonstrates industrial automation best practices:

  • Complete S7-1500 CPU configuration with optimized block access settings

  • Structured function blocks demonstrating professional programming practices

  • Comprehensive I/O mapping for all demo cell components

  • Sequence control logic for coordinated multi-station operation

  • Safety interlocks and emergency stop implementation

  • HMI integration elements for operator interface training

This S7 TIA Portal example project is provided by Andreas Fast from Fast Automation. Thanks a lot for this valuable contribution to the realvirtual community!

🔗 Connect with Andreas Fast: LinkedIn Profile

Signals

1.1 Robot Overall Status (Inputs)

Address
Signal Name
Direction
Description

I0.0

IO.Input.Robot.bStatusLoading

Input

Robot is currently loading a part

I0.1

IO.Input.Robot.bStatusUnloading

Input

Robot is currently unloading a part

1.2 Start Robot Programs (Outputs)

Address
Signal Name
Direction
Description

Q0.0

IO.Output.Robot.bStartLoading

Output

Start the robot loading sequence

Q0.1

IO.Output.Robot.bStartUnloading

Output

Start the robot unloading sequence


2. Machine Signals

Address
Signal Name
Direction
Description

Q1.0

IO.Output.Machine.bStart

Output

Start the machine's machining process

Q1.1

IO.Output.Machine.bOpenDoor

Output

Open the machine door

I1.0

IO.Input.Machine.bMachining

Input

Machine is currently machining

I1.1

IO.Input.Machine.bMachiningFinished

Input

Machining process is finished

I1.2

IO.Input.Machine.bDoorOpened

Input

Machine door is open

I1.3

IO.Input.Machine.bDoorClosed

Input

Machine door is closed


3. Entry and Exit Conveyor

Address
Signal Name
Direction
Description

Q2.0

IO.Output.EntryBelt.Motor.bStart

Output

Start the entry belt motor

Q2.1

IO.Output.ExitBelt.Motor.bStart

Output

Start the exit belt motor

I2.0

IO.Input.EntryBelt.Sensor.bOccupied

Input

Entry belt sensor detects an object

I2.1

IO.Input.ExitBelt.Sensor.bOccupied

Input

Exit belt sensor detects an object


4. HMI (Buttons & Lights)

4.1 Buttons (Inputs)

Address
Signal Name
Direction
Description

I3.0

IO.Input.HMI.OnSwitch.bOn

Input

HMI main switch is on

I3.1

IO.Input.HMI.Emergency.bOn

Input

Emergency stop is activated

I3.2

IO.Input.HMI.AutomaticButton.bPressed

Input

Automatic mode button pressed

I3.3

IO.Input.HMI.EntryBelt.bOn

Input

Entry belt button is on

I3.4

IO.Input.HMI.Robot.bOn

Input

Robot enable button is on

I3.5

IO.Input.HMI.ExitBelt.bOn

Input

Exit belt button is on

4.2 Lights (Outputs)

Address
Signal Name
Direction
Description

Q3.0

IO.Output.HMI.AutomaticButton.bLight

Output

Light for the automatic mode button

Q3.1

IO.Output.HMI.Robot.bLight

Output

Light indicator for robot status

Q3.3

IO.Output.HMI.EntryBelt.bLight

Output

Light indicator for entry belt

Q3.4

IO.Output.HMI.ExitBelt.bLight

Output

Light indicator for exit belt
