Starting from realvirtual.io Version 6, the EnvironmentController leverages Unity's Universal Rendering Pipeline (URP) to provide enhanced visual fidelity and customization options.

You can find the EnvironmentController in realvirtual > Environments as part of the realvirtual Prefab in your scene.


Overview

The EnvironmentController provides three preset visual modes:

  • Default: A balanced environment for general use.

  • Dark: Suitable for low-light or nighttime scenarios.

  • White: Ideal for bright, minimalistic environments.

The component allows adjustments to floor size, fade effects, and toggling advanced features with straightforward controls.


Properties

Mode

  • Dropdown to select the desired environment mode: Default, Dark, or White.

When Advanced Mode is enabled:

  • A hidden Skybox is activated, creating a more immersive environment by enhancing lighting and shadows.

  • A sphere is added to hide the skybox and to show a uni-color background.

Floor

  • Size:

    • Numeric input to specify the floor size in Meter.

  • Fade:

    • Checkbox to enable or disable the fading effect on the floor.


Customizing the Environment

The recommended way to customize the Environment Controller is by overwriting the values of the real irtual prefab in your scene. This approach ensures that your changes are scene-specific while maintaining compatibility with the RealVirtual framework.

Prefab Structure

Each visual setup is organized as a sub-gameobject within the prefab. These sub-gameobjects are activated dynamically based on the current visual mode setting. The three primary modes included are:

  • Dark Mode

  • Default Mode

  • White Mode

Each mode contains the following key components:

1. Sun

  • Represents the primary directional light source for the scene.

  • Customize the intensity, color, and angle of the light for desired effects.

2. Floor

  • Defines the material and rendering properties for the ground plane.

  • Update the floor's texture, material properties, or color to match your scene's aesthetics.

3. Sky

  • Manages the skybox or atmospheric effects.

  • Customize the sky material to change the overall ambiance of the environment.

Effects and Post-Processing

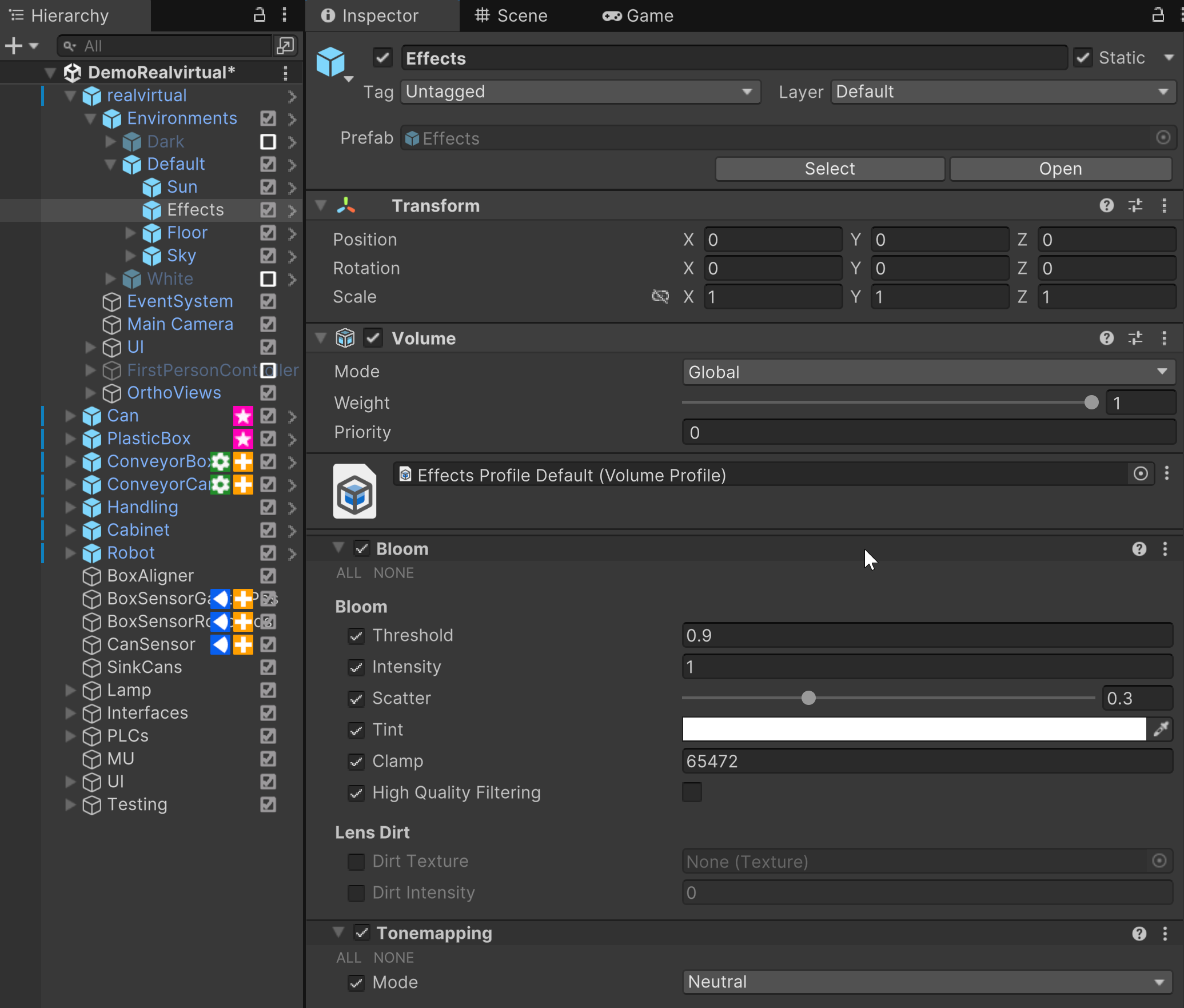

Under the Effects section of each sub-gameobject, you will find settings related to post-processing. These can be tailored to adjust the mood, tone, and visual clarity of the scene. Common properties include:

  • Bloom: Adjust intensity and threshold for glow effects.

  • Color Grading: Modify contrast, saturation, and color tones.

  • Ambient Occlusion: Enhance shadow details for better depth perception.

  • Motion Blur: Add a sense of motion for dynamic scenes.

  • Vignette: Focus viewer attention by darkening edges.

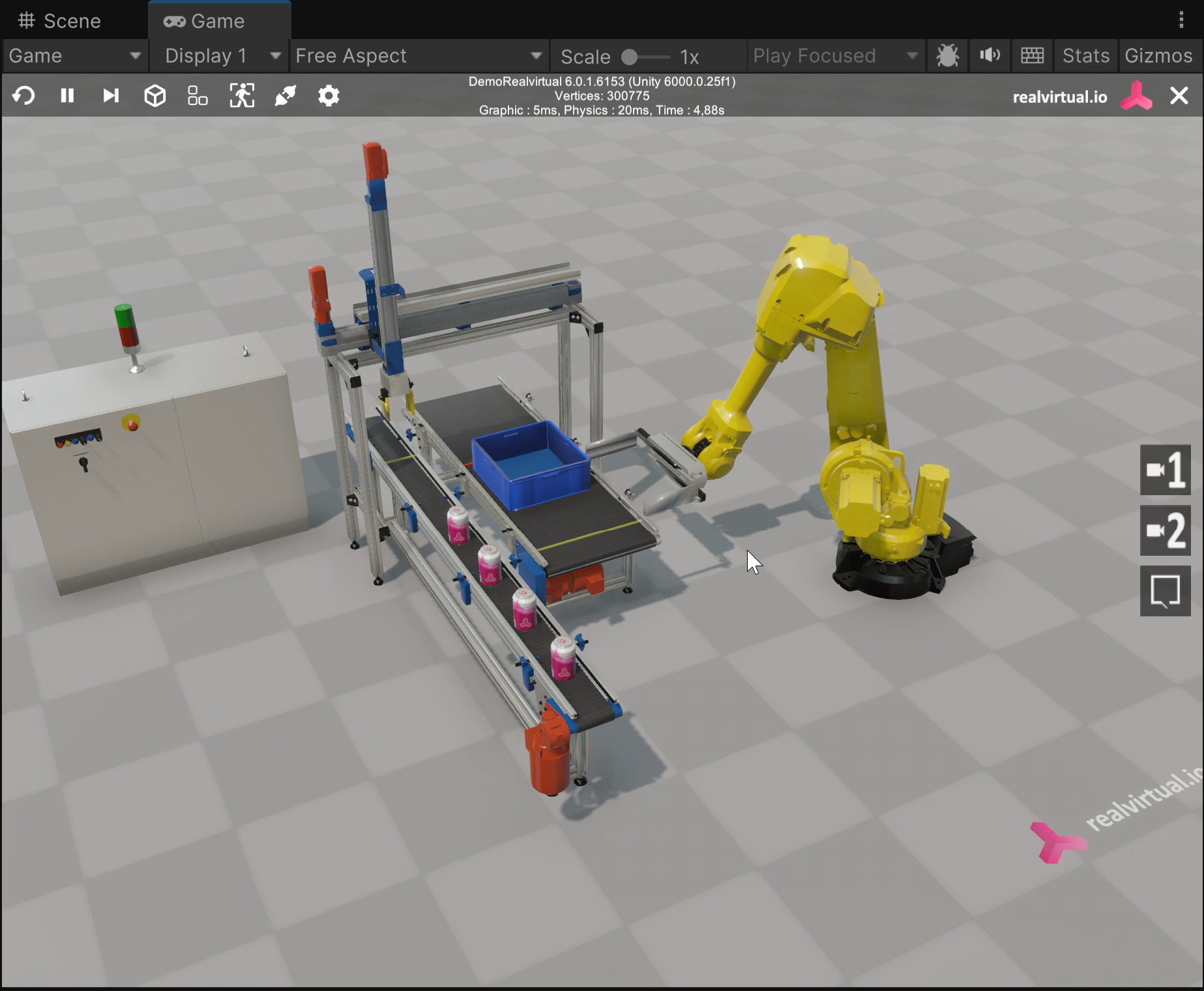

Environment - Default Mode

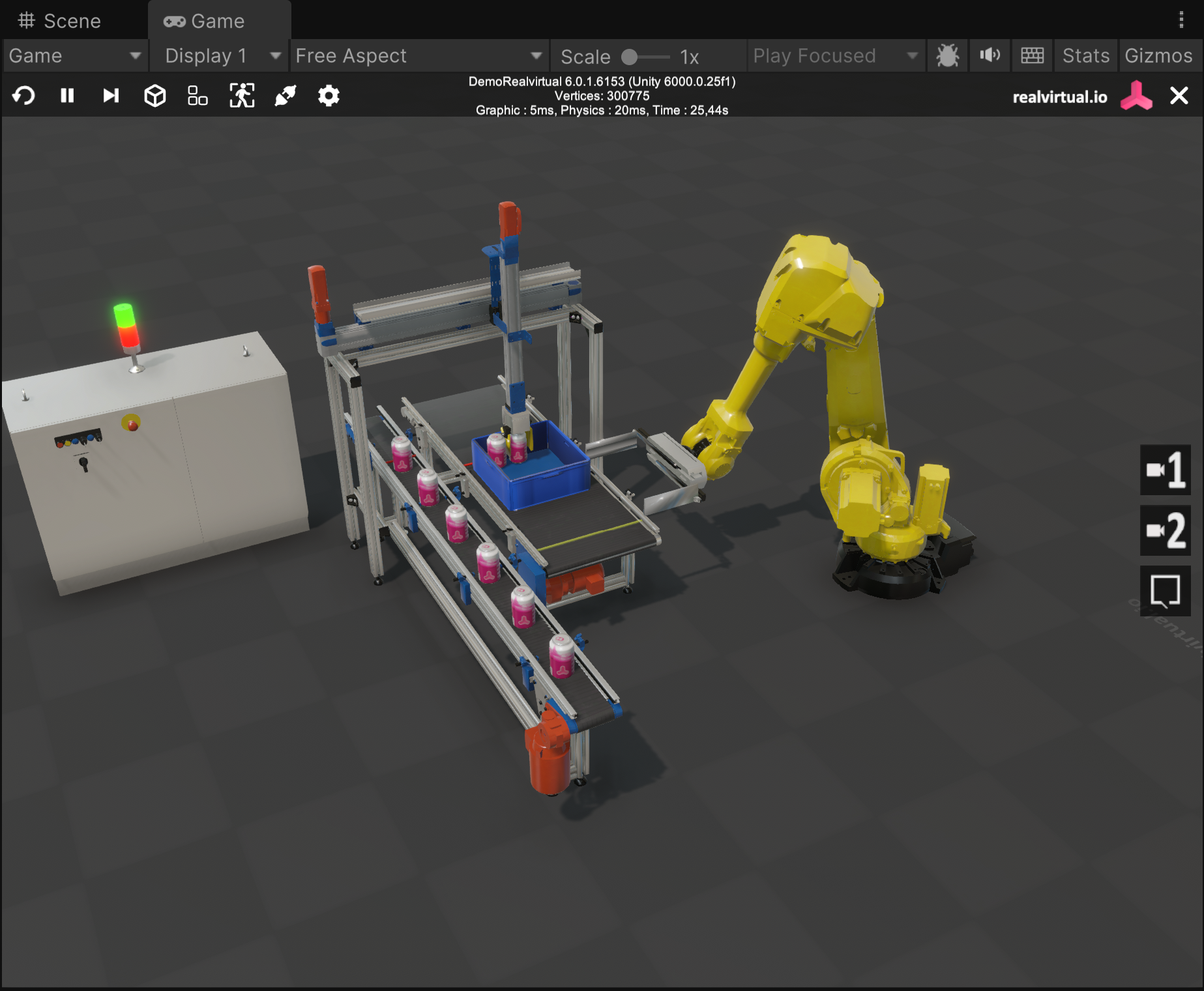

Environment - Dark Mode

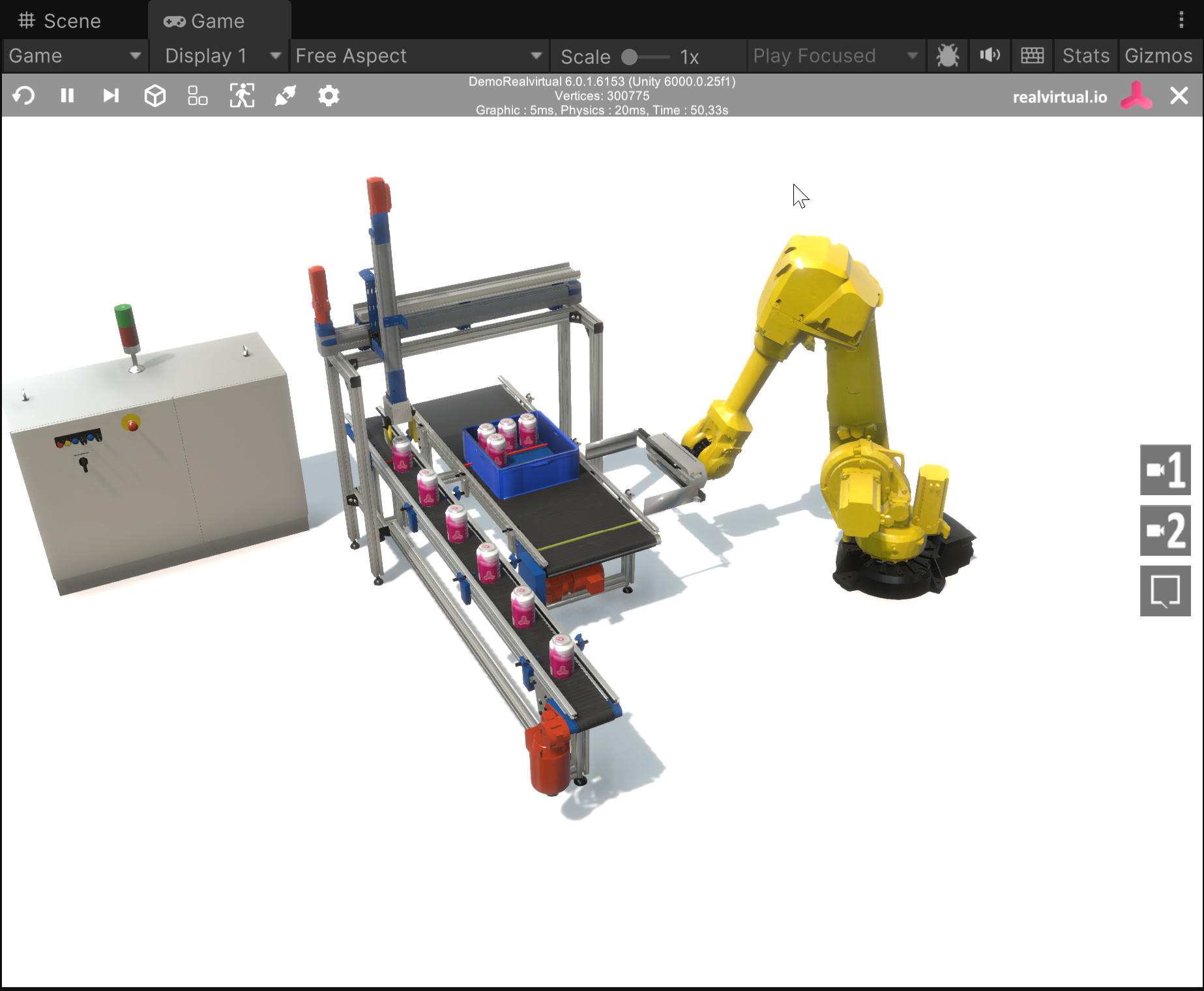

Environment - White Mode

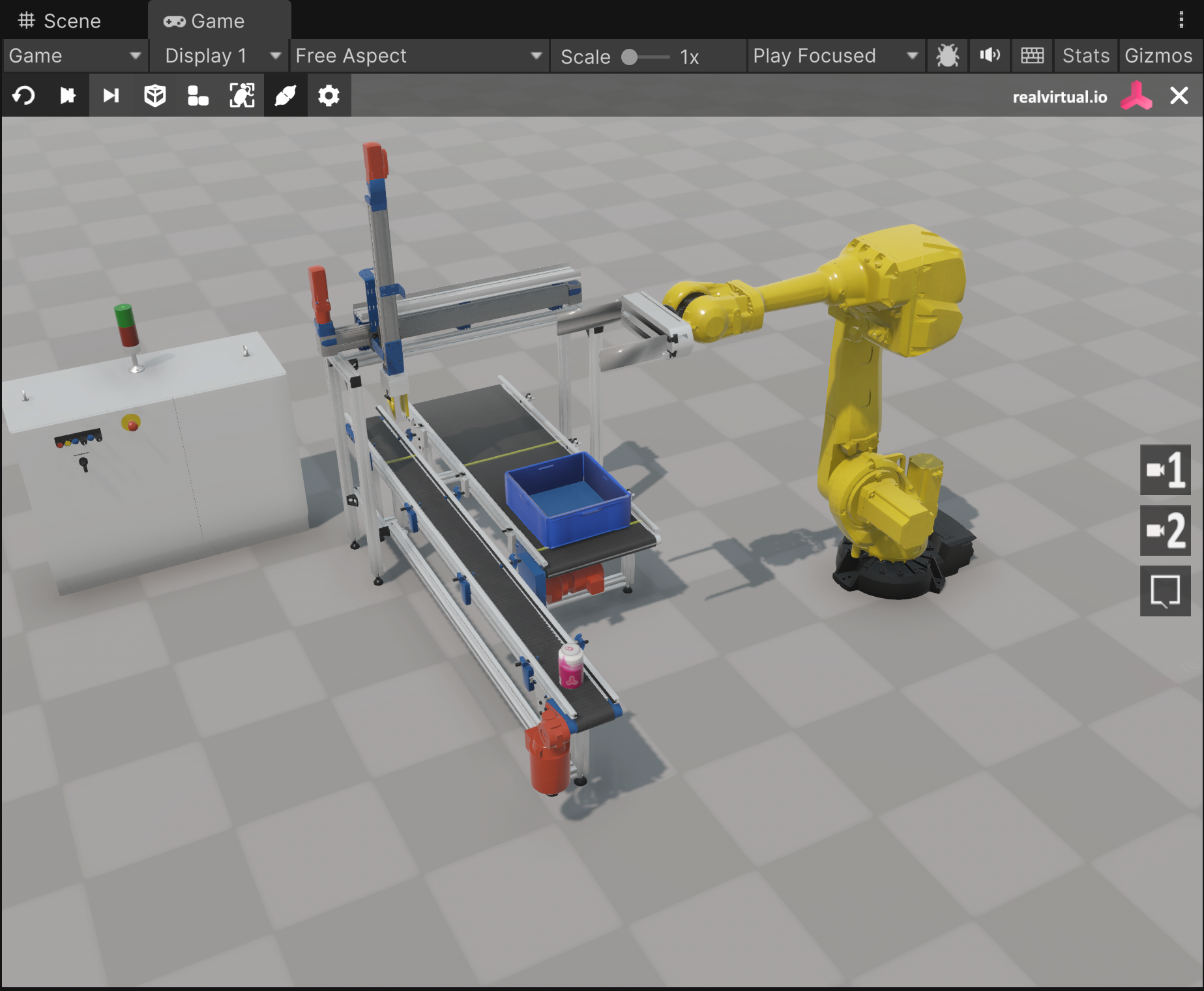

Environment - Advanced Mode deactivated

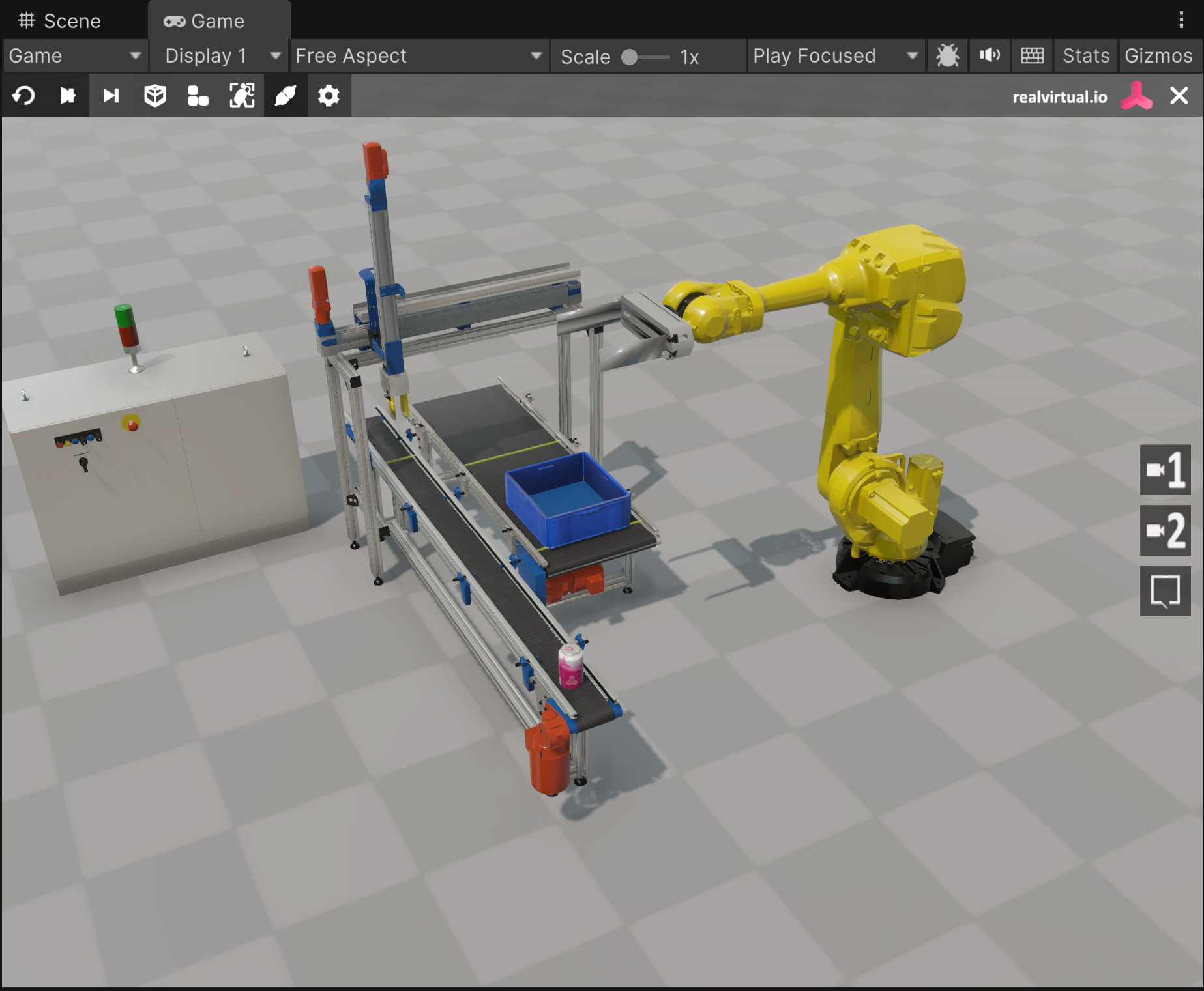

Environment - Advanced Mode activated
