  1. Extensions
  2. ModelZoo

Universal Robots UR10

PreviousWandelbots Nova Fanuc CRXNextFanuc Roboguide

Last updated 1 month ago

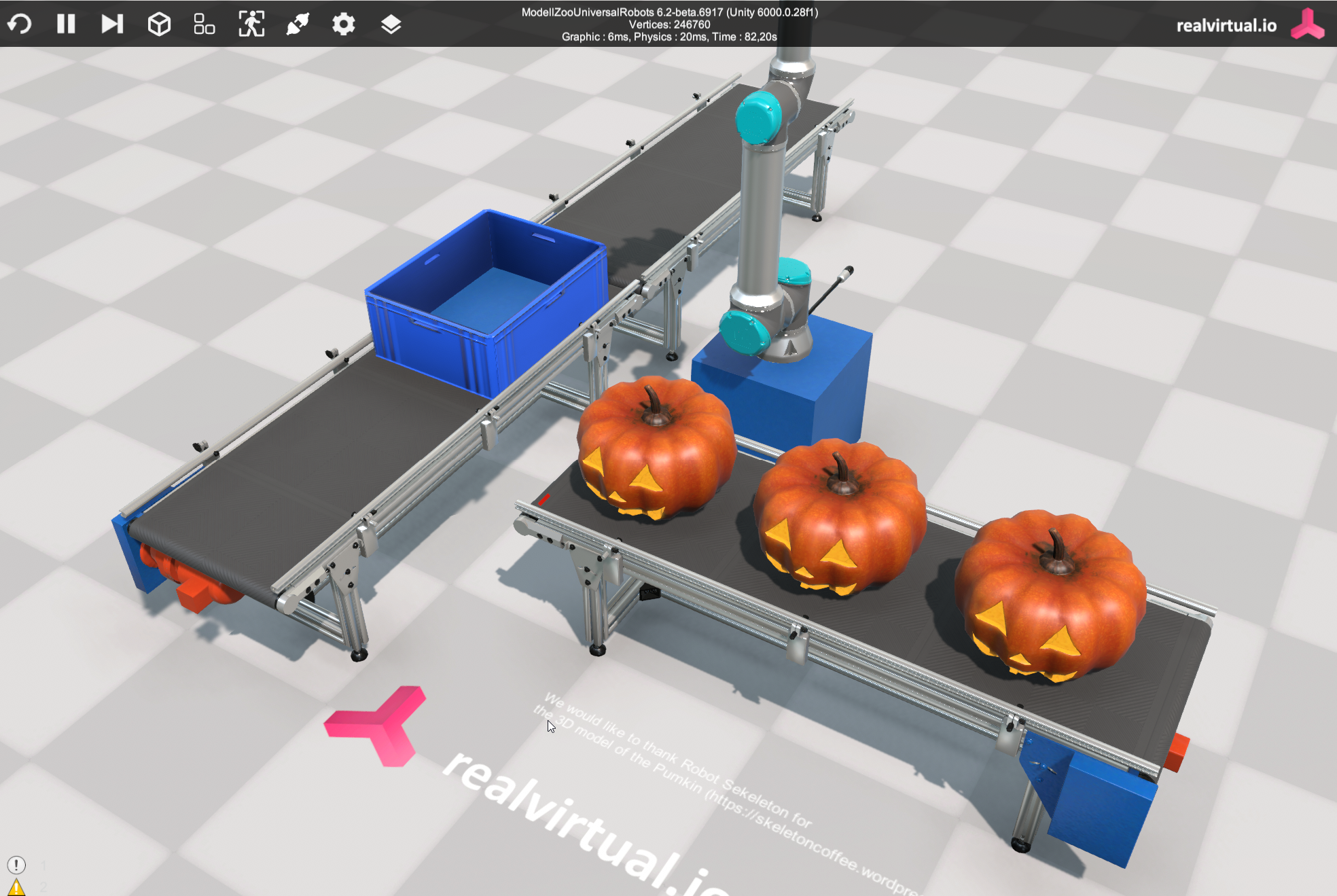

In this ModelZoo scene, a Universal Robots UR10 robot picks up pumpkins from an entry conveyor and loads them into boxes arriving on an exit conveyor. The robot is integrated via the realvirtual.io Universal Robots Interface using TCP/IP.

All logic for conveyor control is handled within the simulation. The robot must be programmed to react to and control digital I/O signals as listed below.

You need to install as a virtual machine on your computer.

Interface Configuration

To establish communication, open the ⚙️ Settings panel in the top menu bar and enter the IP address of your URSIM installation.

Make sure:

  • URSIM is running and reachable at the specified IP address

  • Network access is allowed (firewall, network access to the virtual machine and routing configured correctly)

  • The I/O signals match the configuration in your robot program

Signal Mapping

Digital Outputs (Robot → Simulation)

Signal
Address
Description

CloseGripper

DO[0]

Robot command to close the gripper

RobotMoving

DO[1]

Robot is currently moving

BoxLoaded

DO[2]

Robot signals that a box has been loaded

Digital Inputs (Simulation → Robot)

Signal
Address
Description

LoadAvailable

DI[0]

Simulation signals a pumpkin is ready to load

BoxAvailable

DI[1]

Simulation signals a box is in position

URSIM
Universal Robots modelzoo scene
