HMI Tab

realvirtual.io Professional

PreviousStart your own HMINextHMI DropDown

Last updated 1 year ago

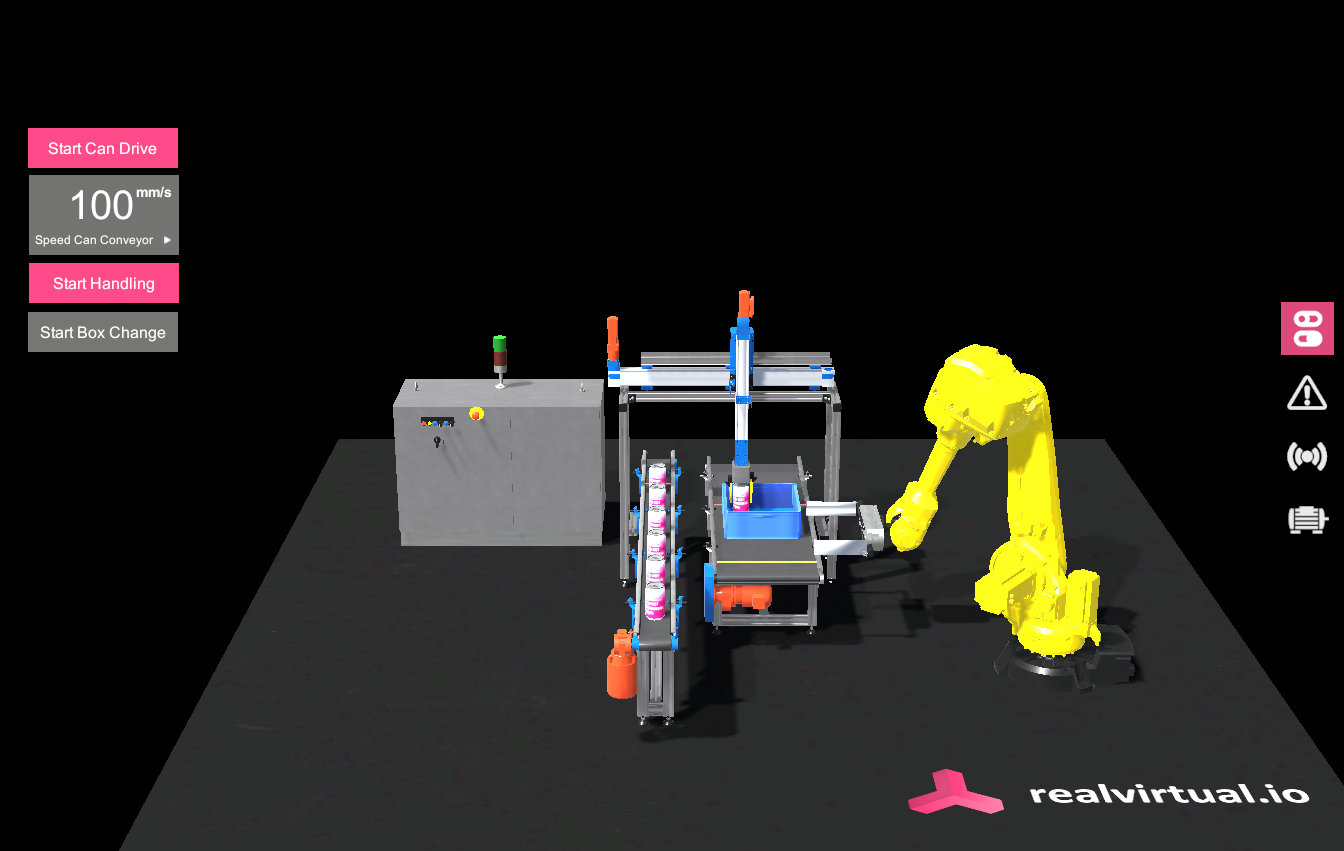

An HMI tab is a user interface overlay that includes multiple elements. We recommend that you start your own tabs based on the existing Tabs within the HMI Demoscene

Activation of the tabs can be done either through a button a dropdown menu or a PLC-signal.

Tab properties

  • Tab Activated: Boolean if the tab is active.

  • Modal: true, if this Tab can't be opened with other Tabs in same time. If it is modal other tabs will be closed automatically.

  • Camera: Cinemachine camera which is activated when the tab is activated

  • SignalTab: PLC Output bool signal which activates / deactivate the tab

Custom Tabs

To create a custom tab pull the prefab "HMI_Tab" in your scene and unpack the prefab. (Right-click on the game object and choose Prefab/unpack completely).

Do not rename the GameObjects within the HMI-prefab. The tab's content consists of two areas: OverlayContent for HMI-elements displayed as a screen overlay, and WorldspaceContent without a Canvas where elements automatically receive a canvas in "WorldSpace" render mode. These elements will be placed in the 3D scene."

HMI TabButton

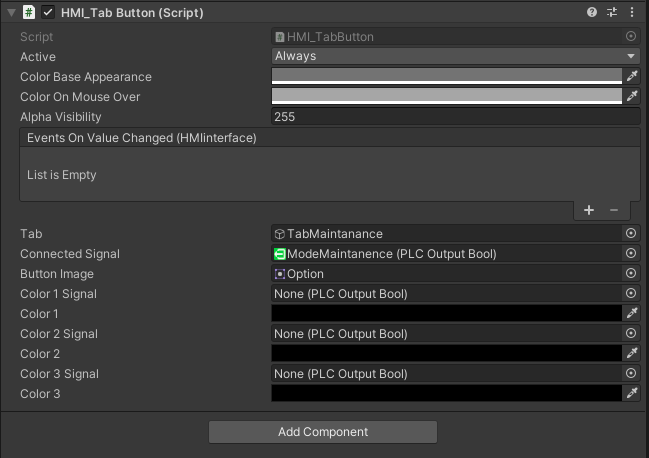

The HMI TabButton is a button which can be placed on the UI for enabling and disabling Tabs.

  • Tab: HMI tab which is controlled by the button

  • Connected Tab Active: Background color of the button when the tab is active.

  • SignalButtonOn: signal to turn the Button on.

  • Button Image: sprite image of the button

  • Color 1 Signal to Color 3 Signal and Colors: the button can change the color depending on which signal is currently true.

  • Image1 to Image3: can be used to change the image of the button depenting on the PLC state

If you use in one of the areas the HMI-tab will detect this and manage them.

HMI-messages

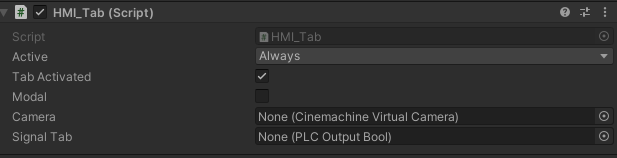

HMI Tab properties

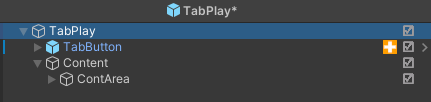

HMI Tab structure
