StatDisplay

The StatDisplay system provides comprehensive real-time performance monitoring and production statistics for realvirtual simulations, enabling detailed analysis of automation system performance.

Professional Version Only: StatDisplay is exclusively available in realvirtual Professional. It is not included in the Starter version.

Requirements

TextMeshPro Required: StatDisplay requires Unity's TextMeshPro for text rendering. TextMeshPro is included with Unity and accessible through the Window menu.

Setting up TextMeshPro

TextMeshPro is already included with Unity. To access TextMeshPro resources:

  1. Access TextMeshPro Menu: Window → TextMeshPro

  2. Import Essential Resources: Select "Import TMP Essential Resources" if prompted

  3. Import Examples (Optional): Select "Import TMP Examples and Extras" for additional resources

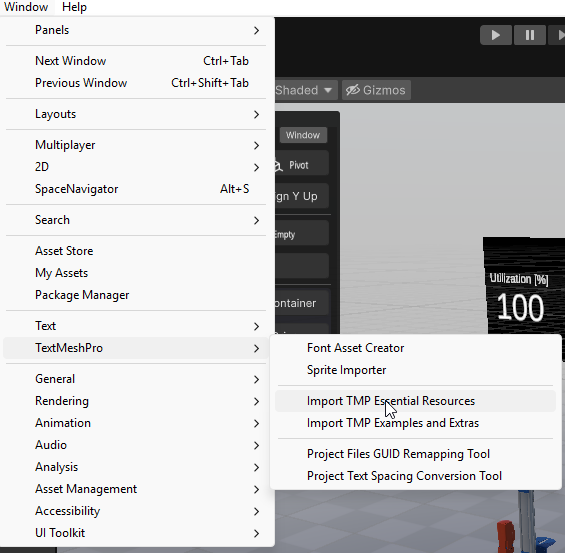

Accessing TextMeshPro resources through Unity's Window menu

Note: TextMeshPro comes pre-installed with Unity. You only need to import the essential resources when first using TextMeshPro components in your project.

Overview

StatDisplay consists of multiple specialized components that work together to provide complete visibility into simulation performance and production metrics. The system tracks output rates, cycle times, state utilization, and operational efficiency to help optimize automation systems during virtual commissioning.

Key benefits include:

  • Real-time production monitoring during simulation

  • Cycle time analysis for performance optimization

  • State utilization tracking for efficiency analysis

  • Automated statistics collection with minimal setup

  • Integration with realvirtual's LogicStep system

💡 Hint StatDisplay components work best when integrated early in the simulation development process, allowing for continuous monitoring during system development and optimization.

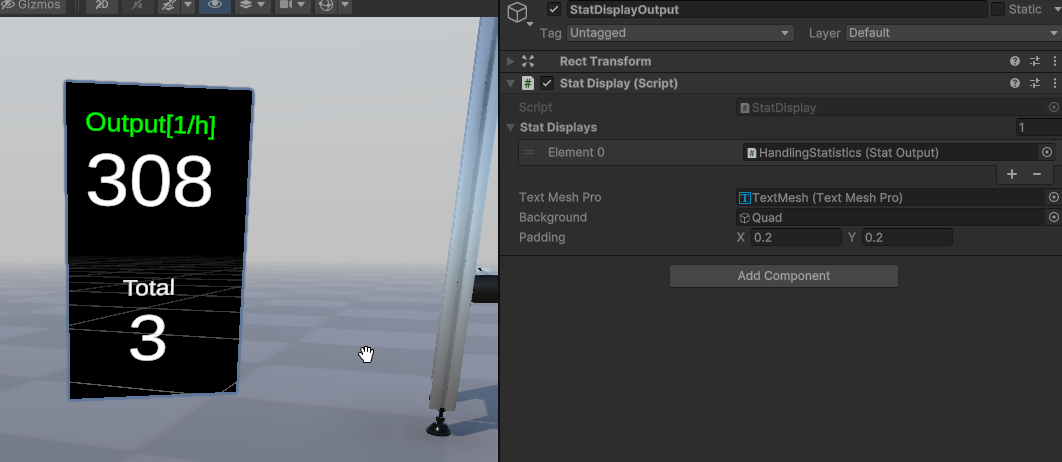

StatDisplay system with StatDisplayOutput component in Unity Inspector

Component Architecture

The StatDisplay system consists of five specialized components that work together:

StatController (Central coordinator)
├── StatDisplayOutput (Visual display)
├── StatCycleTime (Timing analysis)
├── StatStates (Utilization tracking)
└── StatOutput (Production counting)

Component Roles

StatController: Central coordinator for statistics management and reset timing

StatDisplayOutput: Renders real-time statistics to on-screen display using TextMeshPro

StatCycleTime: Tracks production cycle timing with min/max/average analysis

StatStates: Monitors operational states and calculates utilization percentages

StatOutput: Counts production output and calculates rates (parts per hour/day)

Runtime Display

The system provides comprehensive runtime visualization of all statistical data:

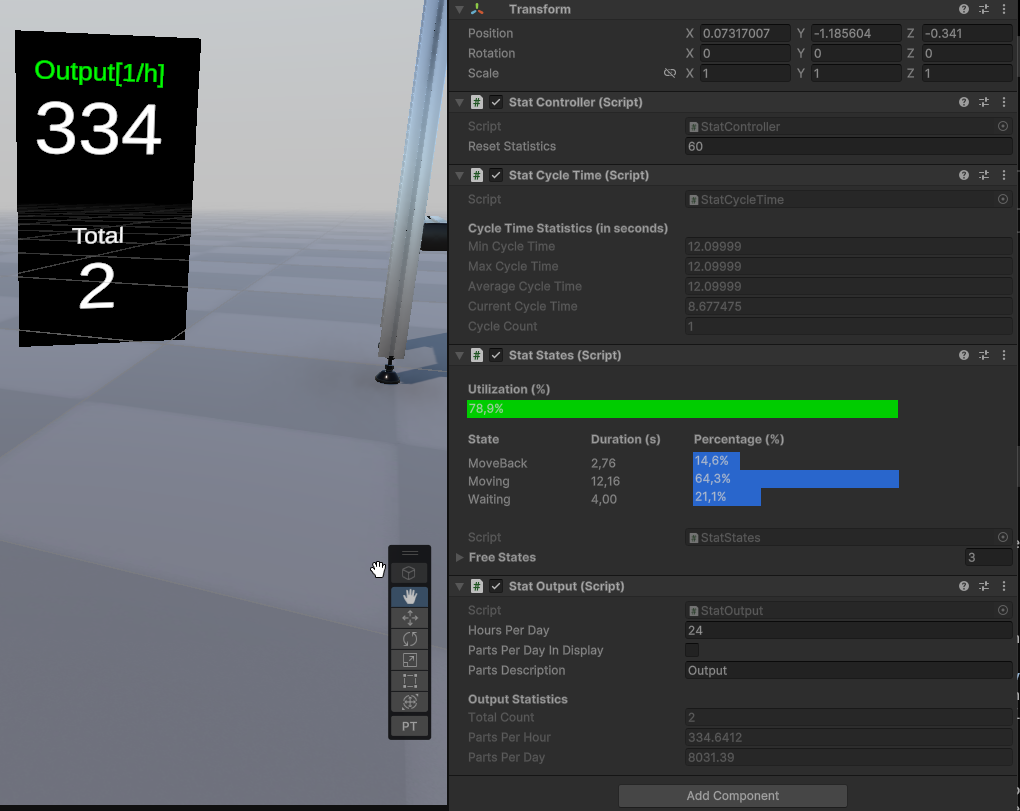

Complete StatDisplay system runtime view showing output stats, cycle times, and state utilization

Quick Start

Basic Setup (5 minutes)

  1. Create Statistics GameObject:

    • Right-click in Hierarchy → Create Empty

    • Name it "ProductionStats"

  2. Add Core Components:

    • Add StatController component

    • Add StatOutput component for production counting

    • Add StatDisplayOutput component for visual display

  3. Configure Display:

    • Create UI Canvas if not present

    • Assign TextMeshPro components to StatDisplayOutput

    • Set reset interval in StatController (default: 60 seconds)

  4. Connect to Production:

    • Use LogicStep components or direct API calls to trigger statistics

    • Call StatOutput.IncrementCount() when parts are produced

StatDisplayOutput Component

Properties

Display Configuration

Stat Displays (Array) Collection of display elements for showing different statistics.

  • Type: StatDisplayElement array

  • Default: Empty array

  • Use case: Define which statistics to show and their formatting

Text Mesh Pro Settings

Background Visual background component for the statistics display.

  • Type: UI Image component reference

  • Default: None

  • Use case: Provide visual background for better text readability

Padding Display padding settings for text layout.

  • Type: Vector2 (X and Y values)

  • Default: (10, 10)

  • Range: 0 to 100 pixels

  • Use case: Adjust text spacing within the display background

Runtime Display Features

The on-screen display shows:

  • Output Rate: Current parts per hour (e.g., "308", "334")

  • Total Count: Cumulative production count

  • Real-time Updates: Live statistics that update during simulation

StatController Component

Properties

Core Settings

Reset Statistics Time interval for automatic statistics reset across all components.

  • Type: Float

  • Default: 60 seconds

  • Range: 1 to 3600 seconds (1 second to 1 hour)

  • Use case: Define how often statistics are cleared for fresh measurements

Component Management

Stat Components Automatically detected statistical components in the scene.

  • Type: Component array (read-only)

  • Default: Auto-populated

  • Use case: Shows which components are managed by this controller

Functionality

The StatController coordinates all statistical components by:

  • Synchronizing reset timing across all statistics

  • Providing centralized management interface

  • Automatically detecting compatible components in the scene

StatCycleTime Component

Properties

Cycle Tracking

Auto Start Detection Automatically detect cycle start events from connected components.

  • Type: Boolean

  • Default: true

  • Use case: Enable for automatic cycle detection, disable for manual control

Cycle Timeout Maximum time before considering a cycle incomplete.

  • Type: Float

  • Default: 300 seconds (5 minutes)

  • Range: 10 to 3600 seconds

  • Use case: Prevent incomplete cycles from affecting statistics

Runtime Statistics

The component tracks and displays:

  • Min Cycle Time: Shortest recorded cycle (seconds)

  • Max Cycle Time: Longest recorded cycle (seconds)

  • Average Cycle Time: Mean cycle time over monitoring period

  • Current Cycle Time: Most recent completed cycle

  • Cycle Count: Total completed cycles since last reset

💡 Hint Use StartCycle() and EndCycle() methods in your LogicStep components to precisely control timing measurement.

StatStates Component

Properties

State Configuration

Default States Predefined operational states for tracking.

  • Type: String array

  • Default: ["Moving", "Waiting", "MoveBack", "Error"]

  • Use case: Customize states to match your automation system

Show Utilization Display overall utilization percentage in runtime statistics.

  • Type: Boolean

  • Default: true

  • Use case: Toggle overall utilization display

Runtime Analysis

The component provides detailed operational analysis:

Overall Utilization: System efficiency percentage based on productive vs idle time

State Breakdown: Time and percentage spent in each operational state:

  • Moving: Active production operations

  • Waiting: Idle time between operations

  • MoveBack: Return or positioning movements

  • Error: Error or maintenance states

💡 Hint Call State("StateName") method to track state changes. States are case-sensitive and must match configured state names.

StatOutput Component

Properties

Production Settings

Hours Per Day Operating hours for daily production rate calculations.

  • Type: Float

  • Default: 24 hours

  • Range: 1 to 24 hours

  • Use case: Set actual operating schedule (e.g., 8 hours for single shift)

Parts Description Custom label for the type of items being counted.

  • Type: String

  • Default: "Parts"

  • Use case: Specify product type ("Bottles", "Assemblies", "Packages")

Display Options

Show Parts Per Day Include daily production projection in the display.

  • Type: Boolean

  • Default: true

  • Use case: Toggle daily rate calculations for short-term analysis

Runtime Statistics

Displays real-time production metrics:

  • Total Count: Cumulative items produced since last reset

  • Parts Per Hour: Current production rate based on recent activity

  • Parts Per Day: Projected daily output based on current rate and operating hours

💡 Hint Use IncrementCount() or IncrementCount(int amount) to track production. The system automatically calculates rates based on timing.

Editor Tools

Inspector Features

Component Auto-Detection: StatController automatically finds and manages compatible statistical components in the scene.

Real-time Preview: Statistics display updates in real-time during Play mode for immediate feedback.

Reset Button: Manual reset button in StatController inspector for clearing statistics during testing.

Gizmos and Visual Aids

State Visualization: StatStates component shows current state in Scene view when selected.

Connection Indicators: Visual lines show relationships between StatController and managed components.

Advanced Configuration

Multi-Station Setup

  1. Separate Controllers: Use individual StatController components for each production station

  2. Component Grouping: Group related statistical components under station-specific GameObjects

  3. Display Coordination: Configure multiple StatDisplayOutput components for different viewing areas

  4. Synchronized Reset: Use global reset timing or independent station resets based on requirements

Usage Examples

Basic Production Monitoring

Simple Output Counting

// In your production logic
public class ProductionStation : MonoBehaviour
{
    public StatOutput outputCounter;

    public void OnPartCompleted()
    {
        outputCounter.IncrementCount();
        Debug.Log($"Total parts: {outputCounter.TotalCount}");
    }
}

Cycle Time Measurement

// Track complete production cycles
public class CycleController : MonoBehaviour
{
    public StatCycleTime cycleTimer;
    public StatStates stateTracker;

    public void StartProduction()
    {
        cycleTimer.StartCycle();
        stateTracker.State("Moving");
    }

    public void CompleteProduction()
    {
        cycleTimer.EndCycle();
        stateTracker.State("Waiting");
    }
}

Integration with LogicStep System

StatDisplay components integrate seamlessly with realvirtual's LogicStep system:

Starting Cycle Time Tracking

public class LogicStep_StatStartCycle : LogicStep
{
    public StatCycleTime StatCycleTimeComponent;

    #pragma warning disable 0414 // Suppress "field assigned but never used" warning
    private bool signalnotnull = false;
    #pragma warning restore 0414

    protected new bool NonBlocking()
    {
        return true;
    }

    protected override void OnStarted()
    {
        State = 50;
        if (StatCycleTimeComponent != null)
            StatCycleTimeComponent.StartCycle();
        NextStep();
    }

    protected new void Start()
    {
        base.Start();
    }
}

Setting State for Utilization Tracking

public class LogicStep_StatSetState : LogicStep
{
    public StatStates StatStatesComponent;
    public string SetState = "Moving";

    protected override void OnStarted()
    {
        if (StatStatesComponent != null)
        {
            StatStatesComponent.State(SetState);
        }
        NextStep();
    }

    protected new void Start()
    {
        base.Start();
    }
}

Advanced LogicStep Integration

// Complete production workflow with comprehensive statistics
public class ProductionSequence : LogicStep
{
    [Header("Statistics Components")]
    public StatCycleTime cycleTimer;
    public StatStates stateTracker;
    public StatOutput outputCounter;

    protected override void OnStarted()
    {
        // Initialize production cycle
        cycleTimer?.StartCycle();
        stateTracker?.State("Moving");

        // Execute production steps
        ExecuteProductionSequence();
    }

    private void ExecuteProductionSequence()
    {
        // Production logic here

        // Complete cycle
        OnProductionComplete();
    }

    private void OnProductionComplete()
    {
        cycleTimer?.EndCycle();
        outputCounter?.IncrementCount();
        stateTracker?.State("Waiting");

        NextStep();
    }
}

Custom Statistics Manager

// Centralized statistics management
public class ProductionStatsManager : MonoBehaviour
{
    [Header("Statistics References")]
    public StatController controller;
    public StatCycleTime[] stationTimers;
    public StatOutput[] stationOutputs;

    public void ResetAllStatistics()
    {
        controller.ResetStatistics();
    }

    public void GetProductionSummary()
    {
        float totalOutput = 0;
        foreach (var output in stationOutputs)
        {
            totalOutput += output.TotalCount;
        }

        Debug.Log($"Total Production: {totalOutput} parts");
    }
}

Display Customization

Custom Display Layout

// Programmatic display configuration
public class CustomStatDisplay : MonoBehaviour
{
    public StatDisplayOutput display;

    void Start()
    {
        ConfigureDisplay();
    }

    void ConfigureDisplay()
    {
        // Customize display appearance
        display.Background.color = Color.black;
        display.Padding = new Vector2(15, 15);

        // Add custom formatting
        display.ShowDecimalPlaces = 1;
    }
}

Troubleshooting

Statistics Not Updating

Symptoms: Display shows static values, zeros, or outdated information

Common Causes & Solutions:

Missing Component References

  • Check that all StatDisplay components have their script references properly assigned

  • Verify StatController can find and manage statistical components in the scene

  • Ensure GameObjects containing statistics components are active

Timing Configuration Issues

  • Verify StatController reset interval matches your analysis needs

  • Check if automatic reset is clearing data too frequently

  • Ensure production events are actually triggering statistical updates

Integration Problems

  • Confirm LogicStep components are calling statistical methods correctly

  • Verify API calls like IncrementCount() and StartCycle() are executed

  • Check Unity Console for any statistical component error messages

Inaccurate Cycle Times

Symptoms: Cycle time measurements don't reflect actual production timing

Diagnosis Steps:

  1. Verify Cycle Boundaries:

    // Ensure StartCycle() and EndCycle() are called at correct times
Debug.Log($"Starting cycle at: {Time.time}");
cycleTimer.StartCycle();

// ... production logic ...

Debug.Log($"Ending cycle at: {Time.time}");
cycleTimer.EndCycle();

  2. Check for Timing Conflicts:

    • Multiple components calling cycle methods simultaneously

    • Reset operations interrupting active cycle measurements

    • LogicStep timing conflicts with manual cycle control

  3. Review Reset Settings:

    • StatController reset interval too short for complete cycle measurement

    • Manual resets during active production cycles

Display Formatting Issues

Symptoms: Statistics appear incorrectly formatted, positioned, or illegible

Visual Display Problems:

  • Text Overlap: Increase padding values in StatDisplayOutput

  • Background Issues: Verify UI Image component is assigned and properly configured

  • Layout Problems: Check Canvas scaling and StatDisplayOutput positioning

  • Missing Statistics: Ensure StatDisplayOutput array includes all desired display elements

UI Integration Issues:

  • Canvas Setup: Verify UI Canvas is configured correctly for your display method

  • TextMeshPro Configuration: Check font, size, and color settings

  • Z-Ordering: Ensure statistics display appears above other UI elements

Performance Issues

Symptoms: Frame rate drops or stuttering when statistics are active

Optimization Solutions:

Reduce Update Frequency:

  • Increase StatController reset interval for less frequent calculations

  • Use fewer concurrent statistical components in large scenes

  • Consider separate StatControllers for different production areas

Display Optimization:

  • Limit number of decimal places shown in display

  • Use object pooling for dynamic statistical displays

  • Disable statistics visualization when not needed

Integration Debugging

Symptoms: Statistics work in isolation but fail in complete simulation

System Integration Checks:

  1. Component Dependencies:

    // Verify all required components are present
if (cycleTimer == null) Debug.LogError("Missing StatCycleTime component");
if (stateTracker == null) Debug.LogError("Missing StatStates component");

  2. Event Timing:

    • Ensure statistical events occur in correct sequence

    • Check for race conditions in complex automation sequences

    • Verify LogicStep execution order doesn't conflict with statistics

  3. Multi-Scene Issues:

    • StatDisplay components may not persist across scene loads

    • Statistics references may break when reloading scenes

    • Consider using DontDestroyOnLoad() for persistent statistics

Performance Tip: In large simulations with many statistical components, consider using separate StatControllers for different production areas to optimize performance and organize statistics logically.

See Also

© 2025 realvirtual GmbH https://realvirtual.io - All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including printing, saving, photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher.

PreviousInteract3DNextUI components

Last updated
