HMI Text

realvirtual.io Professional

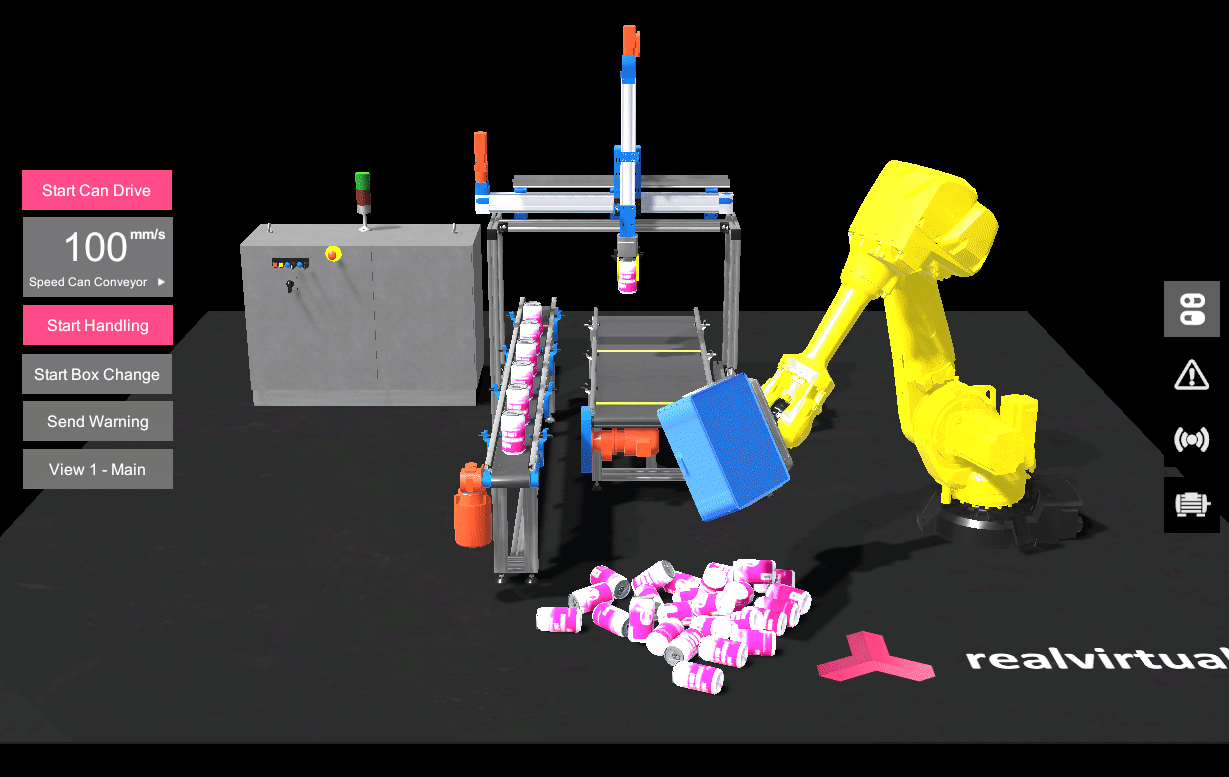

HMI Value is displaying texts for example identification codes or general information. The example below shows texts with the overlay option (BMK tags) and tags with a canvas in render mode "Worldspace" including the follow camera option.

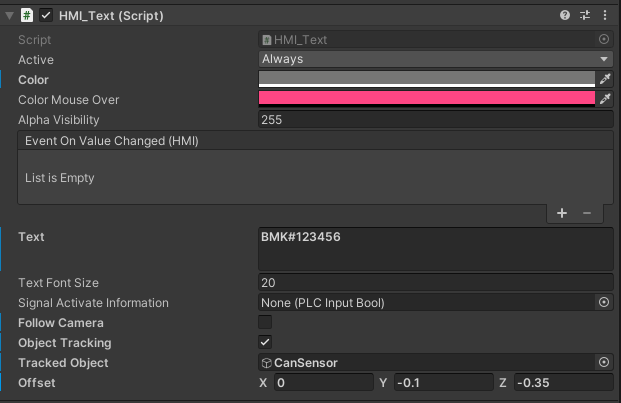

Properties

• Text: user defined text

• Text Font Size: font size of the text

• Signal Activate Information: PLC-signal to set the text active

• Follow Camera: text orientation follows the camera (only relevant in canvas render mode "WorldSpace"

• Object Tracking: activates the object tracking

• Tracked Object: tracked Object of the HMI-Text

• Offset: position offset
