# CAM

A CAM (Camshaft) is a connection mechanism between a master Drive and a slave Drive, often used in packaging machinery and other automation systems. CAMs allow the slave drive to move in relation to the master drive according to a predefined CAM profile. This is particularly useful for controlling complex motion profiles in automated systems.

You can watch this tutorial video to learn more about CAMs:\
<https://youtu.be/nPNgIWcwDAM>

### Defining CAMs <a href="#defining-cams" id="defining-cams"></a>

CAM profiles can be defined and imported into Unity through various file types. The CAM component supports both Excel and CSV formats for defining these profiles.

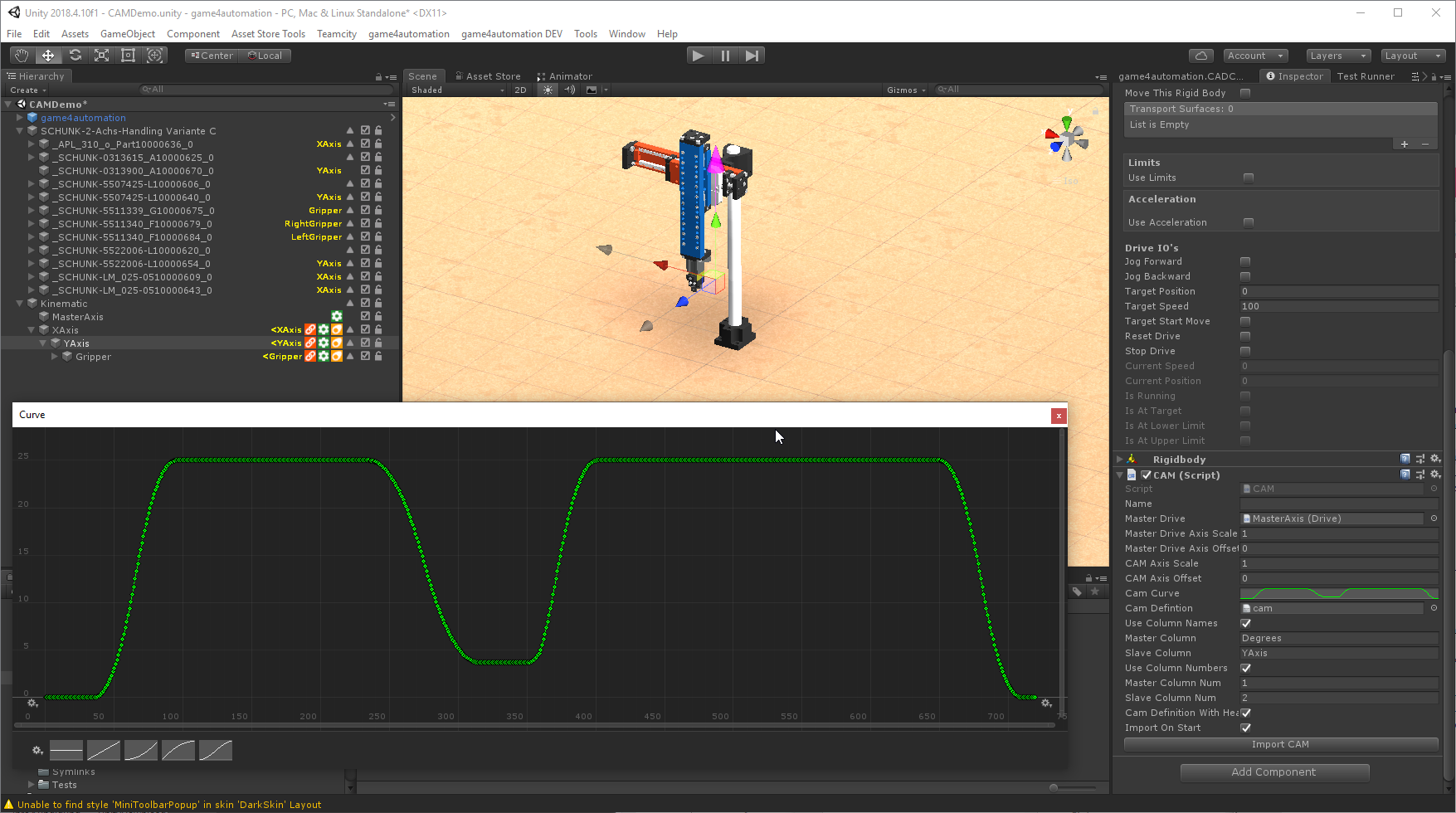

<figure><img src="https://260262196-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FpYxFg97YnJX96UzNNTSd%2Fuploads%2Fgit-blob-8049c58c89b17afd23694a6b3319ade18fdd02eb%2Fcam.png?alt=media" alt=""><figcaption></figcaption></figure>

## **File Types Supported:**

* **Excel**: `.xlsx` files.
* **CSV**: `.csv` files.

## **Public Properties**

**MasterDrive**\
The master drive to which the slave drive is attached. The slave drive's position will be determined by the master drive's position according to the CAM profile.

**MasterDriveAxisScale**\
A scale factor applied to the master drive position to get the value used in the CAM curve.

**MasterDriveAxisOffset**\
An offset added to the master drive position to determine the value used in the CAM curve.

**CAMAxisScale**\
The scale factor for the CAM axis. It scales the values of the CAM curve.

**CAMAxisOffset**\
An offset added to the values of the CAM curve to determine the position applied to the CAM (slave) axis.

**ExcelSheet**\
Name of the Excel sheet used when importing CAM data from an Excel file.

**ExcelFile**\
Path to the Excel file used for importing CAM data.

**CamDefintion**\
A text asset containing the CAM definition. This asset is a table with optional headers and columns describing the master axis position and the slave axis position.

**UseColumnNames**\
Indicates whether column names are used to define the data to import.

**MasterColumn**\
The name of the column in the text asset that contains the master axis position.

**SlaveColumn**\
The name of the column in the text asset that contains the slave axis position.

**UseColumnNumbers**\
Indicates whether column numbers are used to define the data to import.

**MasterColumnNum**\
The column number (starting with 1) that contains the master axis position in the text asset.

**SlaveColumnNum**\
The column number (starting with 1) that contains the slave axis position in the text asset.

**CamDefinitionWithHeader**\
Indicates whether the first line of the text asset is a header.

**ImportOnStart**\
Indicates whether the CAM data should be imported automatically when the simulation starts.

**IsContinous**\
Indicates whether the CAM should continue as an offset based on the last CAM position, useful for continuous movements like transport chains.

**Usage Instructions**

1. **Select CAM File**: Choose the CAM profile file using the `ExcelFile` or `CamDefintion` property, depending on whether you are using Excel or CSV.
2. **Set Scaling and Offsets**: Adjust the `MasterDriveAxisScale`, `MasterDriveAxisOffset`, `CAMAxisScale`, and `CAMAxisOffset` properties to fit your application's requirements.
3. **Import CAM Profile**: Use the `ImportOnStart` property to automatically import the CAM profile when the simulation starts.
4. **Configure Continuous Mode**: Enable `IsContinous` if the CAM profile should operate continuously. Adjust `ContinousOffset` as needed.

Please check the[ Realvirtual.io Class Reference](https://game4automation.com/documentation/current/apidoc/html/classgame4automation_1_1_base_c_a_m.html) for more information about the properties and methods of this component.

\
