# OpenCommissioning

{% hint style="success" %}
**Special Thanks**

We would like to extend our sincere gratitude to the [OpenCommissioning](https://github.com/OpenCommissioning) team for developing and maintaining this exceptional open-source framework for industrial automation simulation. OpenCommissioning's commitment to open standards and collaborative development enables seamless integration across different simulation platforms and tools, advancing the entire virtual commissioning ecosystem.
{% endhint %}

{% hint style="info" %}
This feature was added in realvirtual **6.0.8-8217** (Professional & Starter)
{% endhint %}

## Overview

The OpenCommissioning interface integration bridges realvirtual components with the [OpenCommissioning](https://github.com/OpenCommissioning) open-source framework. OpenCommissioning provides a standardized shared memory communication system for industrial automation simulation, enabling real-time data exchange between simulation components and external control systems. OpenCommissioning uses **TwinCAT** as its realtime environment, providing deterministic execution for virtual commissioning applications. Through OpenCommissioning and Beckhoff hardware, **real fieldbus simulation** becomes possible, allowing direct connection to actual industrial fieldbus networks.

realvirtual's OpenCommissioning integration provides 7 specialized link components that automatically connect realvirtual simulation components (drives, sensors, grippers, lamps) to OpenCommissioning's communication infrastructure. This integration enables seamless interoperability with other OpenCommissioning-compatible tools and systems.

**Learn More:**

* [OpenCommissioning GitHub](https://github.com/OpenCommissioning) - Main repository and documentation
* [OC Unity Core Package](https://github.com/OpenCommissioning/OC_Unity_Core) - Unity integration package

**Key Benefits:**

* Standardized industrial communication using open-source protocols
* Zero-configuration integration with automatic activation
* Real-time bidirectional data exchange with external systems
* Compatible with existing realvirtual simulation models

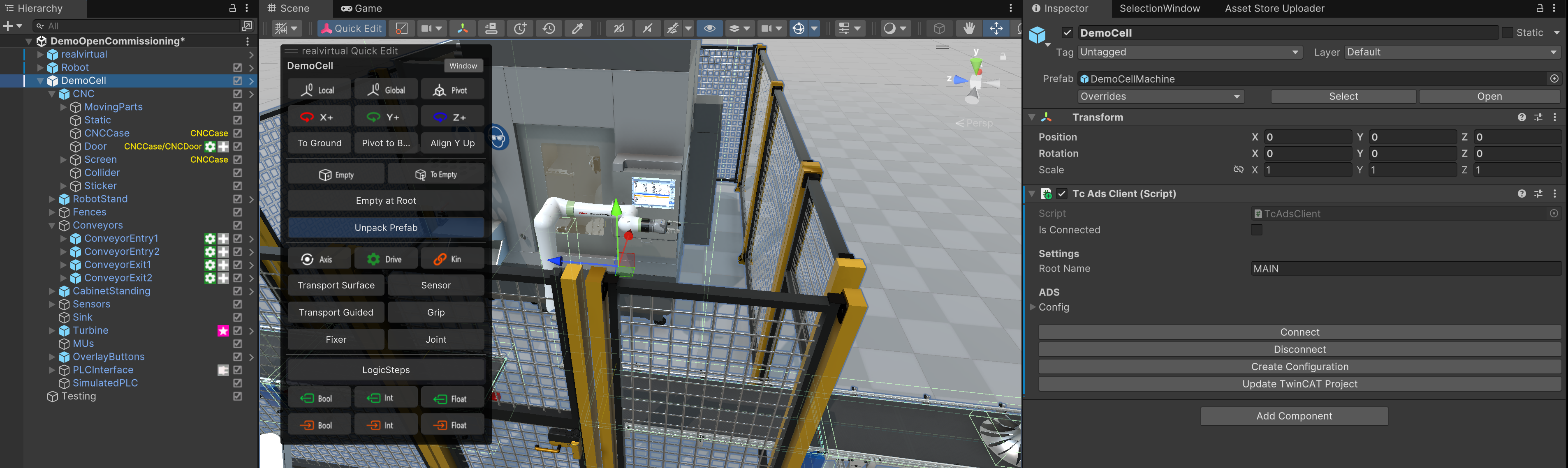

<figure><img src="/files/iUbIc6U8NSif3D6AUMGt" alt=""><figcaption><p>OpenCommissioning demo scene showing realvirtual components integrated with OC Link components</p></figcaption></figure>

## Installation

**Step 1: Install OpenCommissioning Package**

Install the OpenCommissioning Unity package from GitHub using Unity Package Manager:

1. Open Unity Package Manager (Window > Package Manager)
2. Click the **+** button and select **Add package from git URL**
3. Enter: `https://github.com/OpenCommissioning/OC_Unity_Core.git`
4. Click **Add**

**Step 2: Automatic Activation**

Once the OpenCommissioning package is installed, realvirtual automatically activates the integration:

* The `REALVIRTUAL_OPENCOMMISSIONING` compiler directive is enabled
* OC Link components become available in the Component menu
* No additional configuration required

**Step 3: Add TcAdsClient Component**

Add the **TcAdsClient** component to your top-level scene GameObject:

1. Select your main scene root GameObject (e.g., "DemoCell" in the demo scene)
2. Click **Add Component** and search for "TcAdsClient"
3. Configure the TwinCAT ADS connection settings as needed

This component manages the TwinCAT ADS communication between Unity and the OpenCommissioning realtime environment.

**Step 4: Verify Installation**

Confirm successful installation by checking that **Component > realvirtual > OpenCommissioning** appears in the Unity menu with all 7 link components available.

## Available Components

realvirtual provides 7 specialized link components that connect realvirtual simulation components to OpenCommissioning's shared memory system:

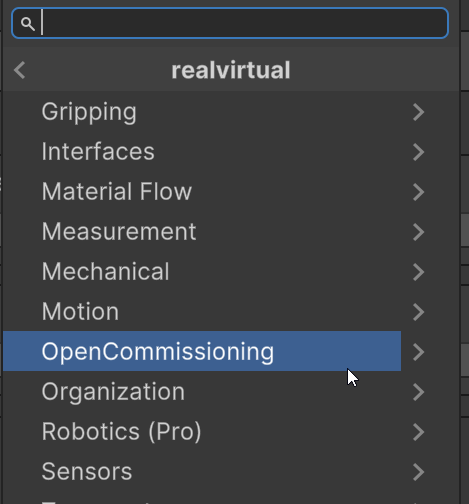

<figure><img src="/files/5vDerUz17iKi8IiztPIZ" alt=""><figcaption><p>OpenCommissioning category in the realvirtual Component menu</p></figcaption></figure>

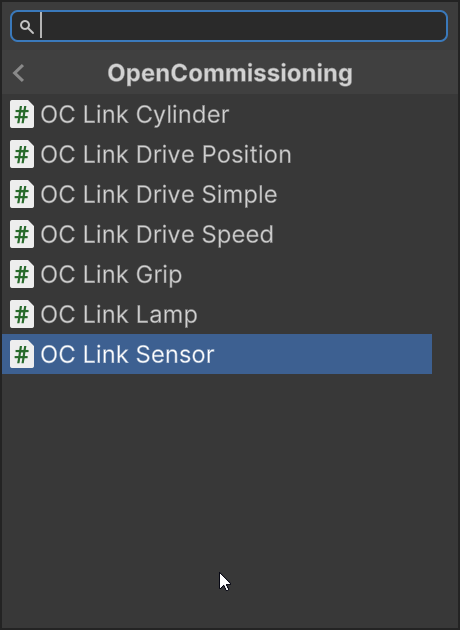

<figure><img src="/files/ZDHzzzETNOa5Na5FzKiN" alt=""><figcaption><p>All seven OC Link components available when OpenCommissioning package is installed</p></figcaption></figure>

**OC Link Cylinder** Links realvirtual Drive\_Cylinder components to OpenCommissioning. Provides position control and status feedback for pneumatic cylinder simulation with extend/retract commands.

**OC Link Drive Position** Connects position-based drives to OpenCommissioning. Enables precise position control with target position commands and current position feedback.

**OC Link Drive Simple** Links drives with forward/backward control to OpenCommissioning. Provides simple directional control with status feedback for basic conveyor and transport applications.

**OC Link Drive Speed** Connects speed-controlled drives to OpenCommissioning. Enables variable speed control with real-time speed commands and feedback.

**OC Link Grip** Links realvirtual Grip components to OpenCommissioning. Provides grip/release commands and status feedback for automated part handling and gripping operations.

**OC Link Lamp** Connects realvirtual Lamp components to OpenCommissioning. Enables remote control of indicator lamps and visual status signals.

**OC Link Sensor** Links realvirtual Sensor components to OpenCommissioning. Provides sensor state output to external systems for proximity detection and part presence monitoring.

## Quick Start

This example demonstrates setting up an OpenCommissioning-linked conveyor with sensor control:

1. **Create or open a scene** with a realvirtual Drive component (e.g., a conveyor belt with Drive\_Simple)
2. **Add OC Link Drive Simple component:**
   * Select the GameObject with the Drive\_Simple component
   * Click **Component > realvirtual > OpenCommissioning > OC Link Drive Simple**
3. **Configure the link:**
   * The link automatically detects the Drive\_Simple component on the same GameObject
   * Set **Communication Name** to identify this drive in OpenCommissioning (e.g., "Conveyor\_Main")
   * Enable **Auto Connect** to establish connection on scene start
4. **Add sensor integration:**
   * Create a realvirtual Sensor component at the conveyor endpoint
   * Add **OC Link Sensor** component to the sensor GameObject
   * Set **Communication Name** to "Sensor\_Endpoint"
5. **Test the integration:**
   * Enter Play mode
   * Verify connection status in the **Status** section of OC Link inspectors
   * Control the conveyor through OpenCommissioning shared memory
   * Monitor sensor state changes in real-time

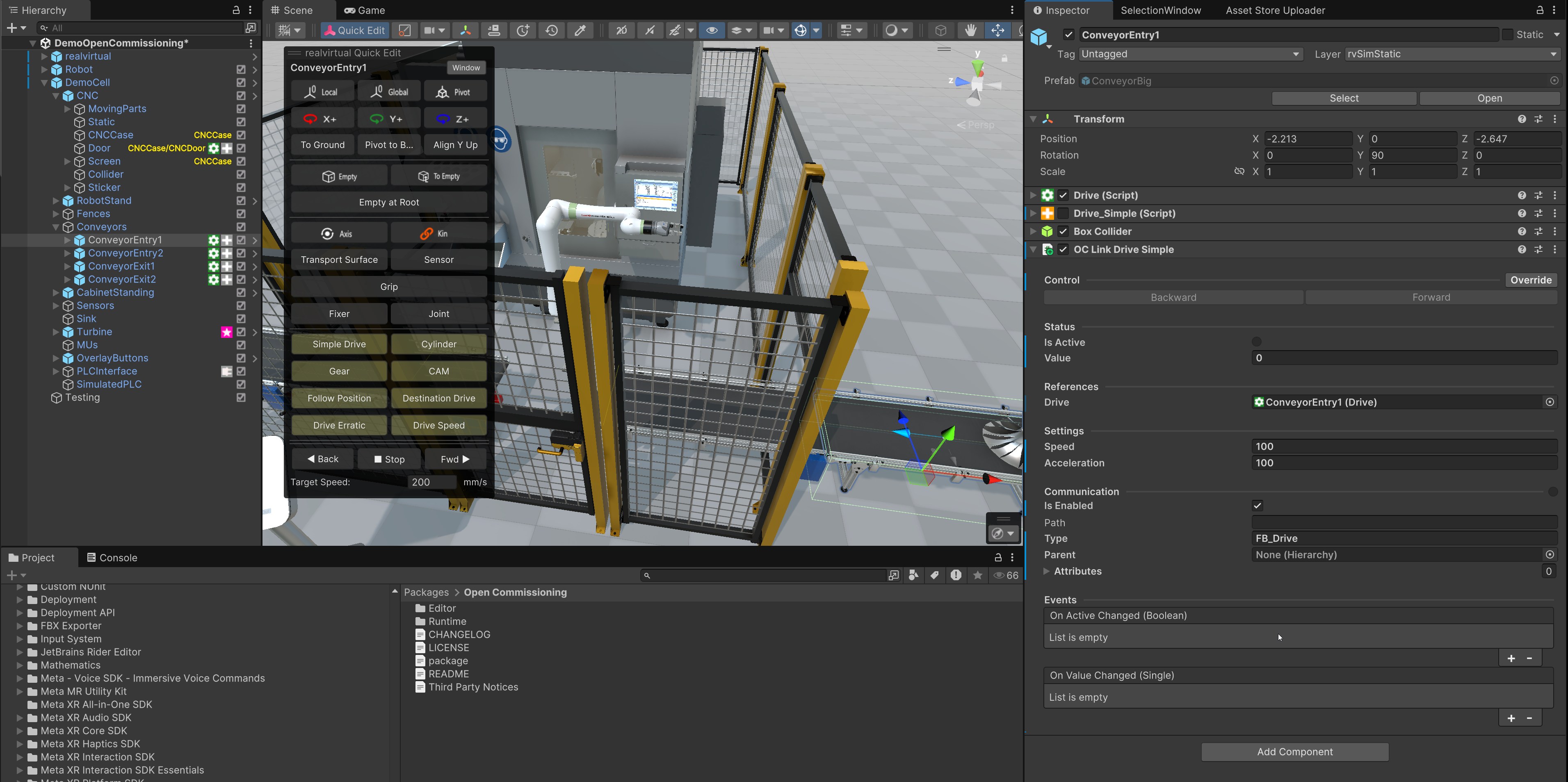

<figure><img src="/files/Ca0Wcbdo8Obe6c4H0MMD" alt=""><figcaption><p>OC Link Drive Simple inspector showing Control, Status, References, Settings, Communication, and Events sections</p></figcaption></figure>

## Component Properties

All OC Link components share common properties organized into collapsible sections:

**Control Section**

* **Forward** (button) - Manually trigger forward motion for testing
* **Backward** (button) - Manually trigger backward motion for testing
* Component-specific controls vary by link type

**Status Section**

* **Connection Status** (indicator) - Shows OpenCommissioning connection state (green = connected, red = disconnected)
* **Current State** (text) - Displays current operational state
* Component-specific status fields

**References Section**

* **Linked Component** (reference) - Automatically detected realvirtual component on same GameObject
* Can be manually assigned if component is on different GameObject

**Settings Section**

* **Communication Name** (string) - Unique identifier for OpenCommissioning shared memory mapping
* **Auto Connect** (boolean) - Automatically establish connection when scene starts
* **Update Rate** (float) - Communication update frequency in milliseconds

**Communication Section**

* **Shared Memory Address** (text) - Current shared memory location (read-only)
* **Last Update Time** (text) - Timestamp of most recent communication (read-only)
* **Error Count** (number) - Number of communication errors since connection (read-only)

**Events Section**

* **On Connected** (UnityEvent) - Triggered when OpenCommissioning connection established
* **On Disconnected** (UnityEvent) - Triggered when connection lost
* Component-specific events for state changes

## See Also

* [S7 Interface](/components-and-scripts/interfaces/s7-tcp.md) - Siemens S7 PLC communication
* [OPC UA Interface](https://github.com/game4automation/doc/blob/doc/components-and-scripts/interfaces/opcua-pro.md) - OPC UA industrial protocol
* [Drive Components](/components-and-scripts/motion/drive.md) - realvirtual drive system
* [Sensor Component](https://github.com/game4automation/doc/blob/doc/components-and-scripts/scene-interaction/sensor.md) - Proximity and detection sensors
* [Grip Component](https://github.com/game4automation/doc/blob/doc/components-and-scripts/scene-interaction/grip.md) - Automated gripping system


---
